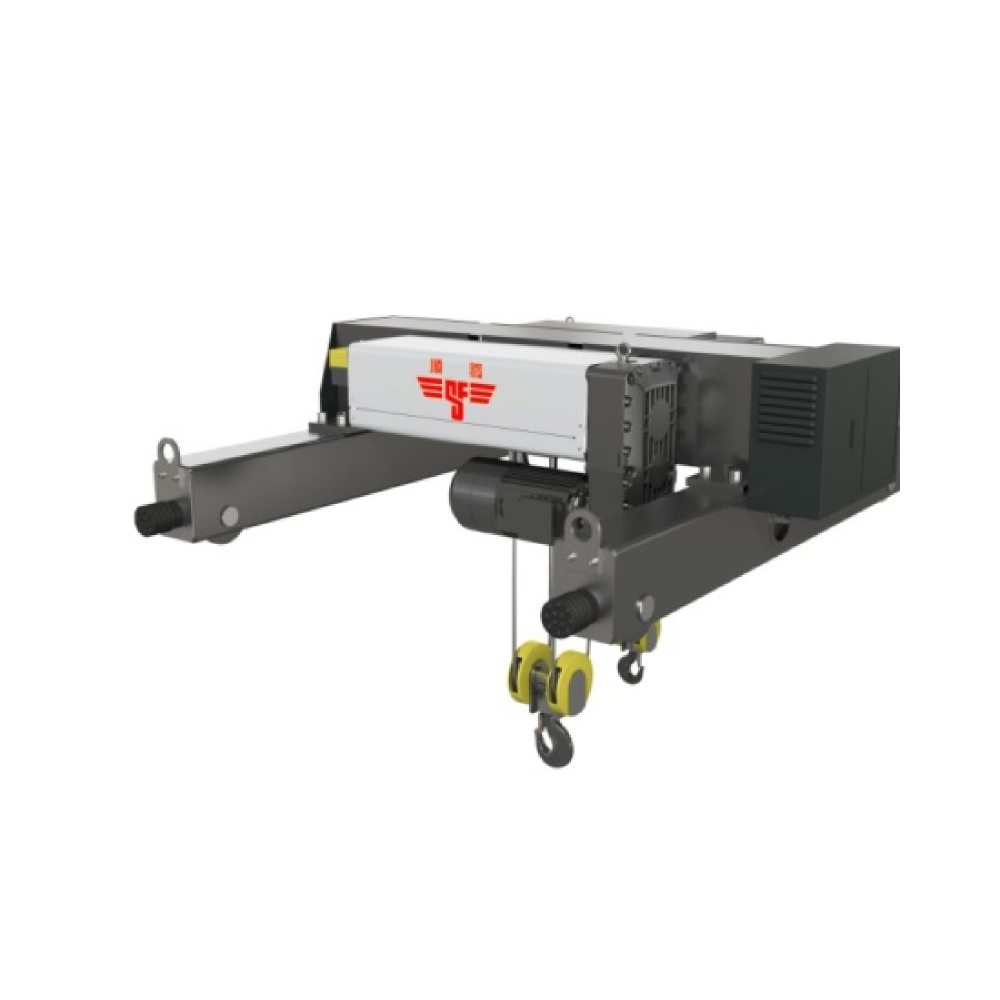

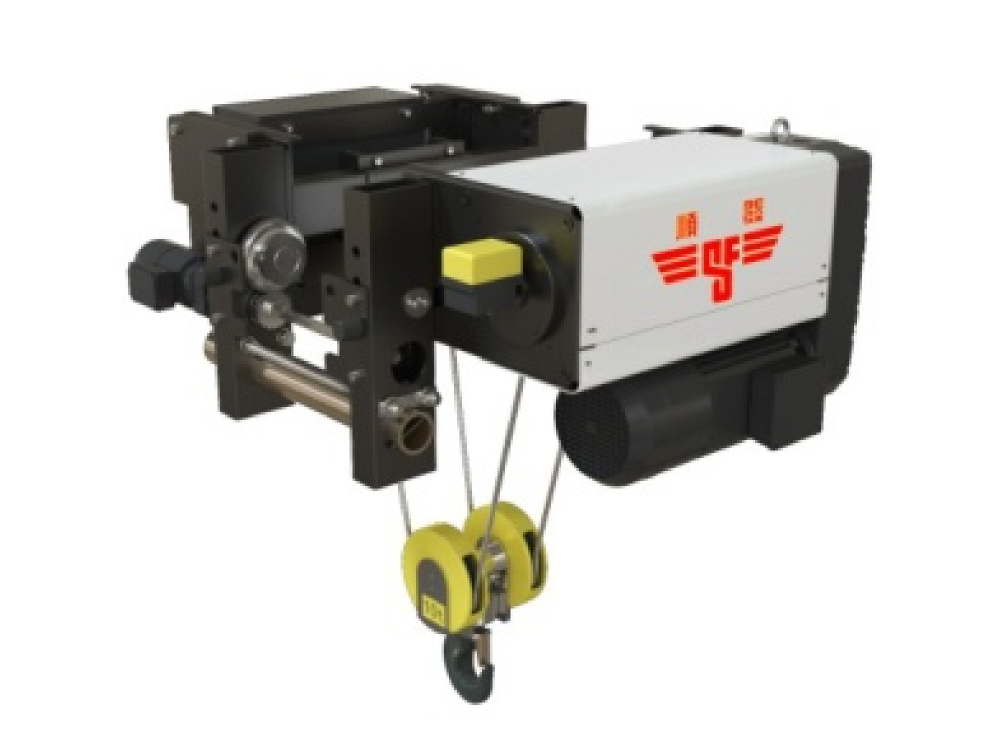

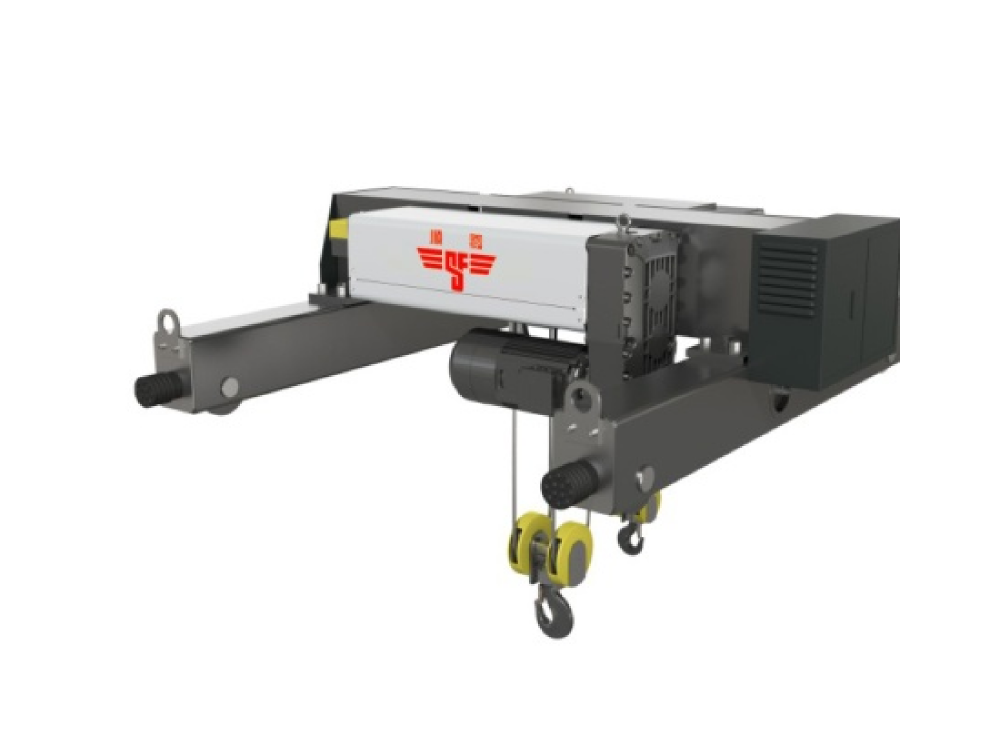

SUNFA Crane Parts European Electric Hoist

●Travelling system
lintegrated design of gearbox,motor and brake, compact structure,stable operation, High eficiency and small impact.
●Rope Guide
Made of engineering plastic nylon, light weight,excellent wear resistance, reducing the wear to the wire rope.
●Drum
The material is Q345 seamless steel tube.The advanced machining ensures the drum concenticiy.The depth of rope groove confoms to FEM.
●Hook assembly
DIN standard hook with safety buckle and wire rope sheath.
●Safety monitor
SFCRANES star inteligent monitoring system is safe and practical with friendly man-machine interface and simple operation.
●High performance wire rope
lmported high-perfommance wire rope with tensile strenath 2160 Nm,.Galvanized surace treatment make it corrosion resistance.
●Height limiter
Freely adustable screw ifing heioht imiter with hich precision and wide adustment range,vlulti-touch confquraion can efecively achieve the switching among fast, slow and stopping functions during rising and falling
●Configuration
Al he motors and reducers are of world famous brand,such as ABM,SEW, SIEMENS,ABB and SCHNEIDER,etc.

product details

Advantages and Features

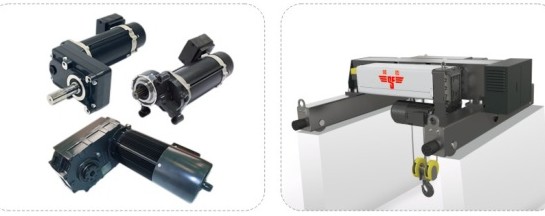

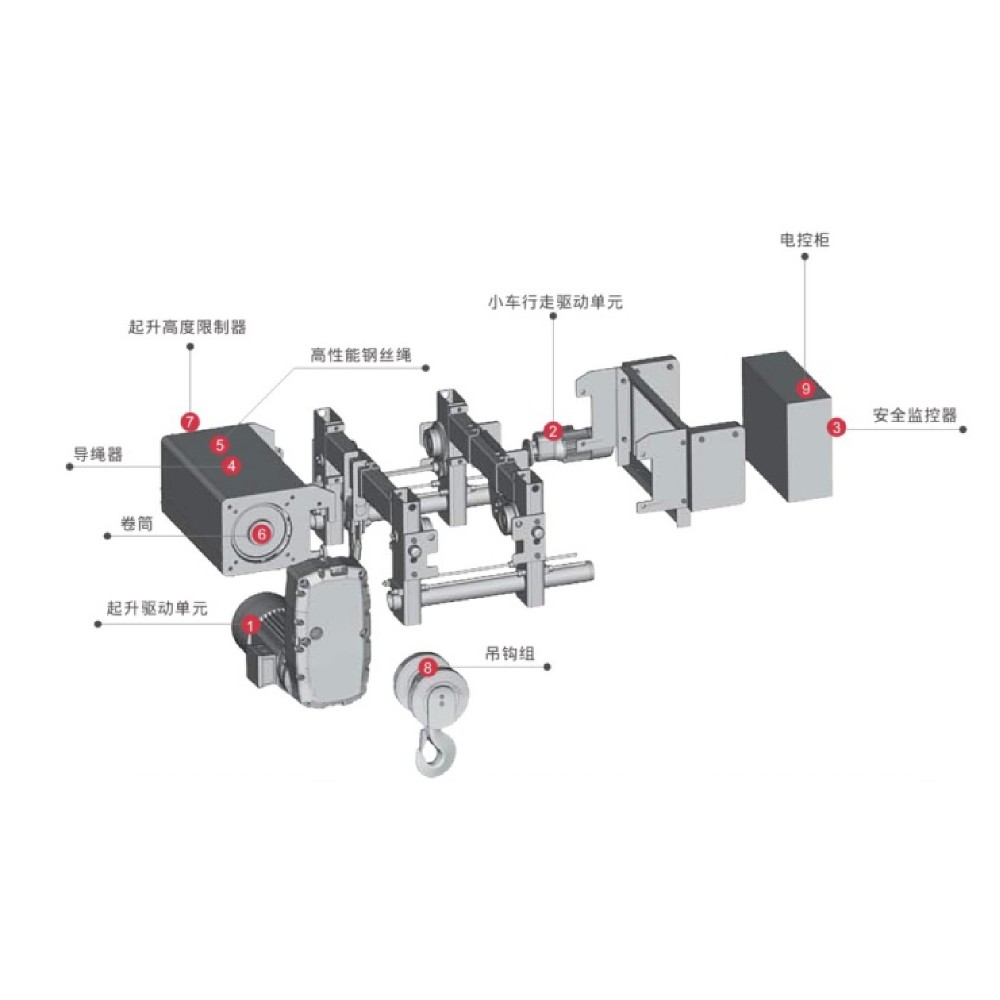

Shunfa Crane Parts European Electric Hoist-main

LIFTING DRIVE UNIT:

Reducer, lifting motor and brake three in one design, lifting torque, small size, smoothoperation, small impact, low noise, low energy consumption, long service life.The service life of the brake is up to 1 million times, the brake is completely closed, and theprotection level is high, which can meet the requirements ofworking in harsh environment.The braking torque is 2 times of the rated torque of the motor. Manual release and encodercan be selected,with strongcustomization.

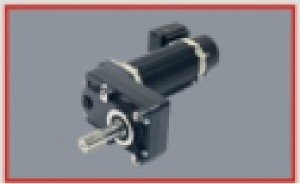

TROLLEY DRIVING UNIT:

Three in one car drive unit,compact structure,smooth operation;

Aluminum alloy shell,fast heat dissipation and long service life;

Frequency conversion control low noise, smooth starting and braking,small impact force,The brake disc does not contain asbestos;The normal service life can reach 1 million times.

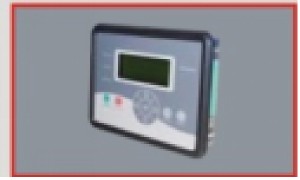

SECURITY MONITOR:

Novostar intelligent monitoring system,safe and practical，man-machine friendly interface, simple operation,can monitor and record the hoist running time,overload times and other information, easy to maintain;Regular maintenance to remind the friction plate wear alarm function;Intelligent interface,can expand the function

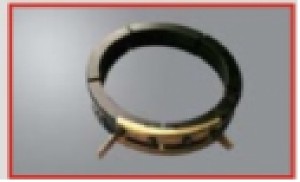

ROPE GUIDE:

It is made of engineering plastics(or ductile iron)with light weight and good wear resistance，which can effectively reduce the wear of wire rope;Prevent rope skipping, rope loosening, etc.

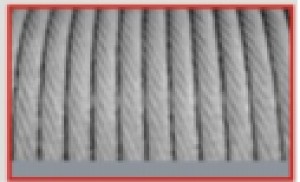

HIGHPERFORMANCEWIRE ROPE:

Imported high-performance wire rope, tensile strength of 2160mpa;The surface is galvanized to prevent corrosion;Good flexibility ensures the wear resistance of wire rope and prolongs its service life.

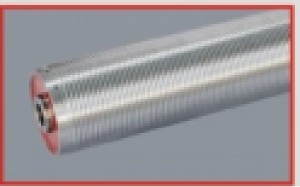

REEL:

Q345 seamless steel pipe is used as raw material and processed layer by layer;Advanced processing means to ensure the concentricity of the drum;

The depth of rope groove conforms to FEM standard;High strength pressing plate and bolt are used to fasten the end of wire rope to ensure lifting safety.

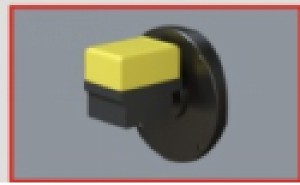

LIFTING HEIGHT LIMITER:

Freely adjustable screw type lifting height;

The limiter has the advantages of high precision,wide adjustment range, safety and reliability.The configuration of multi contacts can effectively realize the fast and slow switching and stop functions when ascending and descending.

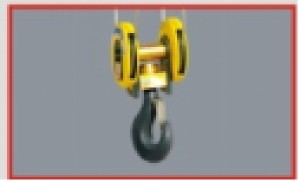

HOOK GROUP

DIN standard hook with safety buckle and wire rope sheath;Ergonomics design;Forged from T-grade high strength material;Attached with the hook NDT certificate.

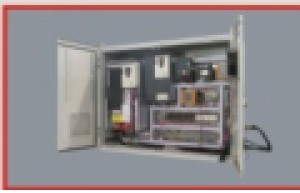

ELECTRIC CONTROL PANEL

Reasonable design, convenient maintenance, a variety of safety protection devices to ensure the safe operation of the equipment;The rehearsal of components is neat and uniform, and the wire number is clear,which is convenient for troubleshooting;There are many options to meet different needs, including stainless steel box, cooling fan,heater,temperature monitoring, etc.

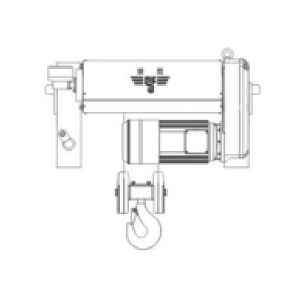

Parameters

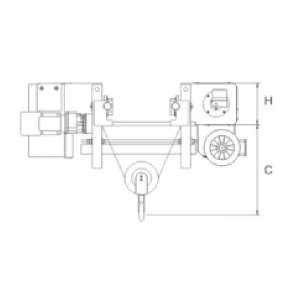

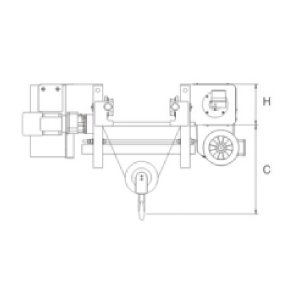

●Technical Parameters Of Electric Hoist For Sfxt Single Girder Crane

CAPACITY (kg)	WORKING CLASS (FEM)	WORKING CLASS (ISO/GB)	LIFTING HEIGHT (m)	LIFTING SPEED (m/min)	TROLLEY SPEED (m/min)	I (mm)	C (mm)
1000	4m	M7	6/9/12/18	0.8/5.0	5-20	245	385
1250	3m	M6	6/9/12/18	0.8/5.0	5-20	245	385
1600	3m	M6	6/9/12/18	08/5,0	5-20	245	385
1600	4m	M7	6/9/12/18	1,3/8,0	5-20	245	385
2000	2m	M5	6/9/12/18	0.8/5.0	5-20	245	385
2000	3m	M6	6/9/12/18	1.3/8.0	5-20	245	385
2500	3m	M6	6/9/12/18	0.8/5.0	5~20	245	385
2500	3m	M6	6/9/12/18	1.0/6.3	5~20	245	385
2500	2m	M5	6/9/12/18	1.3/8.0	5~20	245	385
3200	2m	M5	6/9/12/18	0.8/5.0	5-20	245	385
3200	2m	M5	6/9/12/18	1.0/6.3	5~20	245	385
5000	2m	M5	6/9/12/18	0.8/5.0	5~20	266	495
5000	2m	M5	6/9/12/18	1,6/10	5~20	296	792
5000	3m	M6	6/9/12/18	1.3/8.0	5~20	296	792
6300	1 Am	M4	6/9/12/18	08/5,0	5~20	266	495
6300	1 Am	M4	6/9/12/18	1.3/8.0	5~20	266	495
6300	2m	M5	6/9/12/18	1.3/8.0	5~20	266	495
6300	3m	M6	6/9/12/18	1.0/6.3	5~20	266	495
8000	1 Am	M4	6/9/12/18	1.3/8.0	5~20	296	792
8000	3m	M6	6/9/12/18	0.8/5.0	5~20	296	792
10000	1 Am	M4	6/9/12/18	1.0/6.3	5~20	296	792
10000	2m	M5	6/9/12/18	0.8/5.0	5~20	296	792
10000	3m	M6	6/9/12/18	0.66/4.0	5~20	296	792
12500	1 Am	M4	6/9/12/18	0.8/5.0	5~20	296	792
12500	2m	M5	6/9/12/18	0.6/4.0	5~20	296	792
12500	2m	M5	6/9/12/18	0.6/4.0	5~20	296	792

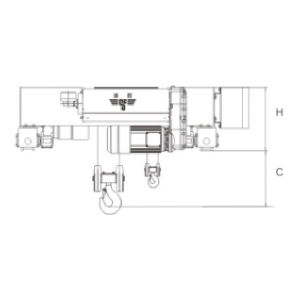

●TechnicalParameters Of Electric Hoist For Sfxt Double Girder Crane

CAPACITY (kg)	WORKING CLASS (FEM)	WORKING CLASS (ISO/IGB)	LIFTING HEIGHT (m)	LIFTING SPEED (m/min)	TROLLEY SPEED (m/min)	1 (mm)	c (mm)
2000	2m	M5	6/9/12/18	0.8/5.0	5-20	230	350
3200	2m	M5	6/9/12/18	0.8/5.0	5-20	230	350
5000	2m	M5	6/9/12/18	0.8/5.0	5~20	230	350
5000	2m	M5	6/9/12/18	0.8/5.0	5-20	230	350
8000	3m	M6	6/9/12/18	0.8/5.0	5-20	540	360
10000	1 Am	M4	6/9/12/18	1.0/6.3	5~20	540	360
10000	2m	M5	6/9/12/18	0.8/5.0	5~20	540	360
10000	3m	M6	6/9/12/18	0.66/4.0	5-20	540	360
12500	1 Am	M4	6/9/12/18	0.8/5.0	5~20	540	420
12500	1 Am	M4	6/9/12/18	1.0/6.3	5-20	540	420
12500	2m	M5	6/9/12/18	0.6/4.0	5-20	540	420
16000	2m	M5	6/9/12/18	0.66/4.0	5~20	640	480
20000	1 Am	M4	6/9/12/18	0.66/4.0	5~20	640	480
20000	2m	M5	6/9/12/18	0.53/3.4	5-20	640	480
20000	3m	M6	6/9/12/18	1.0/4.2	5-20	790	620
25000	1Am	M4	6/9/12/18	0.53/3.4	5-20	790	620
25000	2m	M5	6/9/12/18	0.8/3.3	5-20	790	620
25000	2m	M5	6/9/12/18	1.0/4.2	5-20	790	620
32000	2m	M5	6/9/12/18	0.8/3.3	5~20	790	620
32000	2m	M5	6/9/12/18	0-4.9	5-20	895	980
40000	1 Am	M4	6/9/12/18	0-4.9	5-20	895	980
50000	2m	M5	6/9/12/18	0-3.2	5-20	895	980
50000	1 Am	M4	6/9/12/18	0-4.0	5~20	895	980
63000	1 Am	M4	6/9/12/18	0-3.2	5~20	975	1100
63000	2m	M5	6/9/12/18	0-2.4	5-20	975	1100
80000	1Bm	M3	6/9/12/18	0-3.8	5~20	1025	1525
100000	1Bm	M3	6/9/12/18	0-2.1	5-20	1025	1525
