QESF type aluminum profile oxidation special crane is specially designed according to the aluminum profile oxidation coloring process in the aluminum profile factory oxidation workshop and the aluminum profile spraying process in the spraying workshop. Its applicable lifting capacity is 1+1t, 1.5+1.5t, 2+2t, the applicable span is 10.5-16.5 meters, and the working environment temperature is within the range of -25—+40℃. It is easy to operate and has good safety performance, and is widely used in the aluminum profile manufacturing industry.

Grab cranes are bridge cranes that use grab buckets as spreaders. They can perform operations such as unloading, stacking, turning, retrieving, and loading materials during raw material preparation. Grab bridge cranes are widely used for general cargo lifting operations in various factories and mines. It is equipped with special spreaders such as grab buckets for special operations.

The BX wall-mounted slewing jib crane is a small to medium-sized lifting equipment that has developed in recent years. It has a unique structure, is safe and reliable, energy-efficient, time-saving, labor-saving, and flexible. It can operate freely in three-dimensional space and, in scenarios requiring short distances and frequent handling, it outperforms other traditional lifting equipment.This type of crane comes in two forms: single girder and double girder. Single girder cranes are used for small tonnage, while double girder cranes are used for large tonnage.Applicable places: automotive manufacturing, machining, papermaking, and other industries.

LX model single beam suspension motor crane and CD1, MD model electric hoist are used together as a complete set. It is a light duty track travelling crane with trajectory which applies to and used at machinery, assembling sites and warehouses.This product adopts ground controlling and works at a temperature of-25 to 40 .It is prohibited to use the.

The MH single-girder gantry crane is a medium to small-sized gantry crane that can be equipped with cantilevers. The electric hoist is available in CDI, MDI, and other forms. The main girder is a composite beam made of U-shaped channel plates and I-beams welded together. The trolley running mechanism uses a three-in-one drive device.

The grab trolley crane is a specialized lifting device designed for efficient material handling. It operates with a grab suspended by four steel ropes, ensuring even load distribution and secure lifting. This crane offers a wide span of 5m to 31.5m and a lifting height of up to 24m, suitable for diverse industrial settings. It is rated for a service class of A6 to A7, indicating its heavy-duty capabilities. Control modes include wireless remote and cabin control, and it requires a standard 3AC, 50Hz, 380V power supply. Lifting, trolley, and bridge speeds vary from 10m/min to 100m/min, making it a high-performance option for material handling in various industries.

The MHB model single-girder gantry crane is a single-girder semi-gantry crane that uses an electric hoist as the lifting mechanism. The electric hoist is available in CDI, MDI, and other forms. The main girder is a composite beam made by welding U-shaped channel plates and I-beams, and the trolley running mechanism uses a three-in-one drive device. Its applicable lifting capacity is 3-16t, with a span of 5-16 meters, using a semi-leg structure. Typically, the other side's trolley running mechanism is mounted on the factory building. The working environment temperature ranges from -25℃ to 40℃. Its structure is simple, and it is easy to install, use, and maintain. It is mostly used in factories, cargo yards, and other places where the frequency of use is low or the number of lifts at the rated lifting capacity is few.

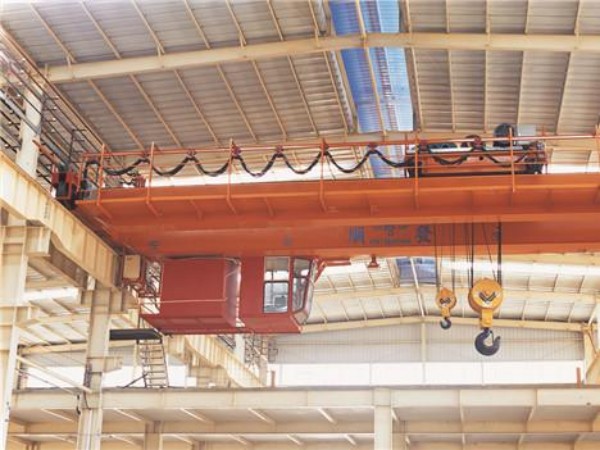

European double girder cranes have excellent load-bearing capacity, with lifting weights ranging from 3 tons to 250 tons and spans of up to 40 meters. The hook can be lifted to the middle position between the two main girders, greatly increasing the lifting height. They are equipped with maintenance platforms and guardrails for easy maintenance and inspection. European double girder cranes are an ideal choice for industrial applications and are very popular in the market. It features superior performance, compact structure, lightweight, green and energy-saving, silent operation, low wheel pressure, safety and reliability, and high operational efficiency. It can help you effectively utilize available space, save overall investment costs for the factory, improve production efficiency, reduce daily maintenance, save operational energy consumption, and achieve better investment returns.

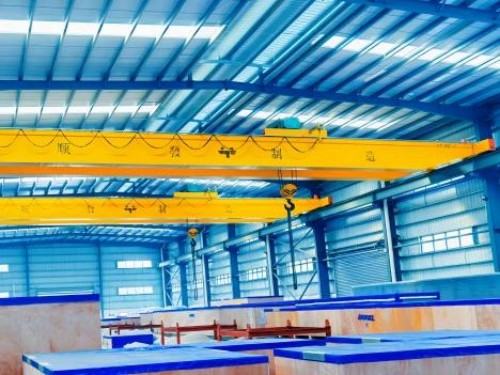

The European single girder crane has a lifting capacity ranging from 1 ton to 20 tons, with a span of up to 28.5 meters. European single girder cranes are an ideal choice for industrial applications and are very popular in the market. It features superior performance, compact structure, lightweight, green and energy-saving, silent operation, low wheel pressure, safety and reliability, and high operational efficiency. It can help you effectively utilize available space, save overall investment costs for the factory, improve production efficiency, reduce daily maintenance, save operational energy consumption, and achieve better investment returns.

Applicable load capacity:5t-250t
Applicable span length:5m-50m

• The recommended maximum lifting capacity is 250t.
• The standard lifting height can reach up to 100 meters.
• The standard span can reach up to 50 meters.
• Designed and manufactured according to national standards GB and ISO standards.
