MHSE Type Double Girder Half Gantry Crane
Advantages and Features
The MHSE Type Double Girder Half Gantry Crane is a double girder semi-portal crane with one end mounted on the workshop beam and the other end running on the ground track. It is often used for lifting and transportation operations in outdoor and railway line areas. It features a compact structure, cost-effectiveness, and high production efficiency. The crane's power supply method is divided into cable reels and safe power supply sliding contacts for users to choose from.
Usage speed
● Single-speed and dual-speed lifting
● Crane operating speed (variable frequency drive)
● The running speed of the cart (variable frequency speed control)
Safety
● Electric hoist with overload limiter
● Electric hoist with matching height limit switch
● Safety instruments and limiters for the operation of large and small vehicles
● Large vehicle operation sound and light alarm
Operating method
● Ground handle control
● Wireless remote control
Speed
● Lifting speed (single speed): 8m/min 7m/min 3.5m/min
● Lifting speed (dual speed): 8/0.8m/min 7/0.7m/min 3.5/0.35m/min
● Large vehicle speed (variable frequency): 0-20m/min 0-30m/min 0-45m/min 0-60m/min
● Cart speed (variable frequency): 0-20m/min 0-30m/min
Operating Environment
● Indoor use
● Outdoor use (add rain cover)
● All motors must have a protection level of no less than IP55, and the control box must have a protection level of no less than IP54.
Option configuration
● Variable frequency drive
● Dual-speed motor
● Large vehicle optical-electronic anti-collision device
● Maintenance cage
Smart features options
● Anti-sway hook
● Remote service
● Target positioning
● Pick-and-place linkage
......（More features await your personal exploration）

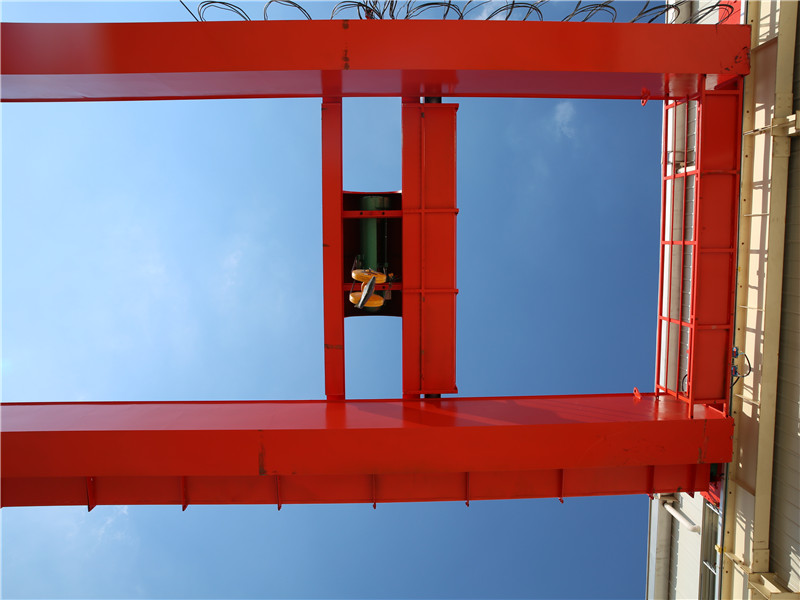

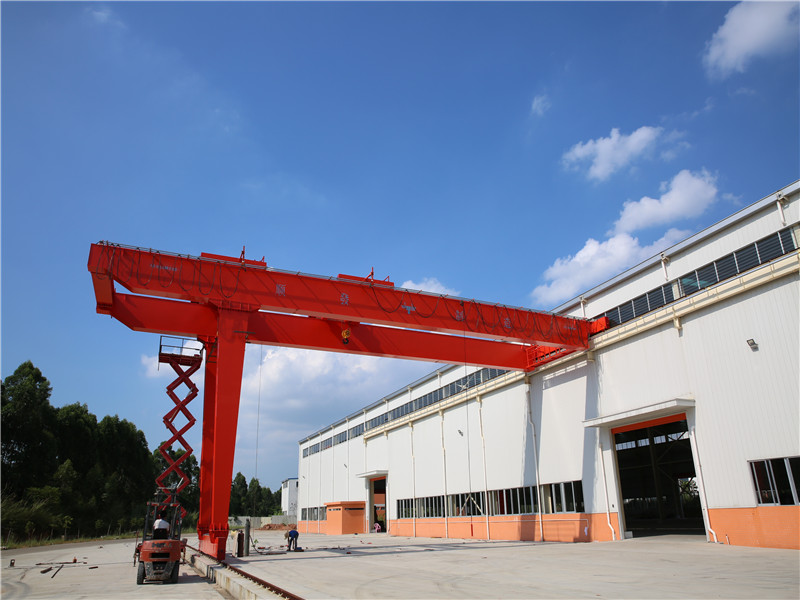

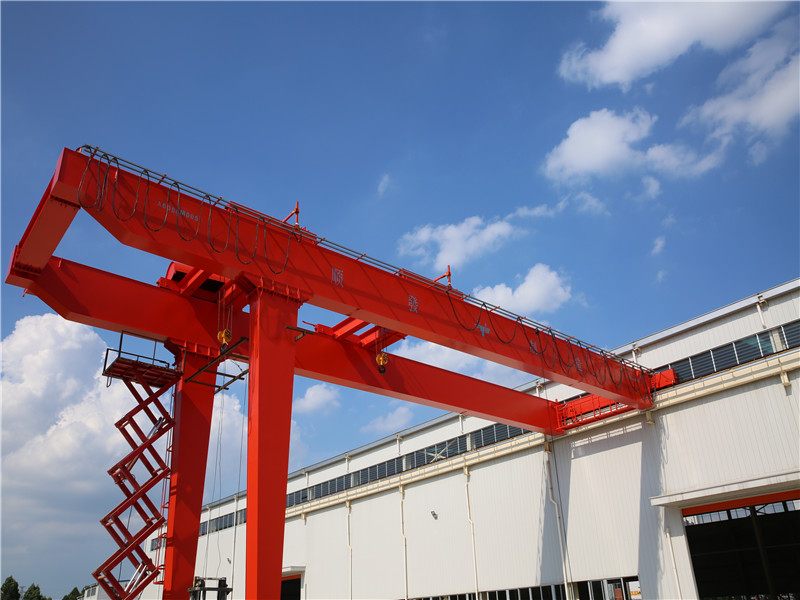

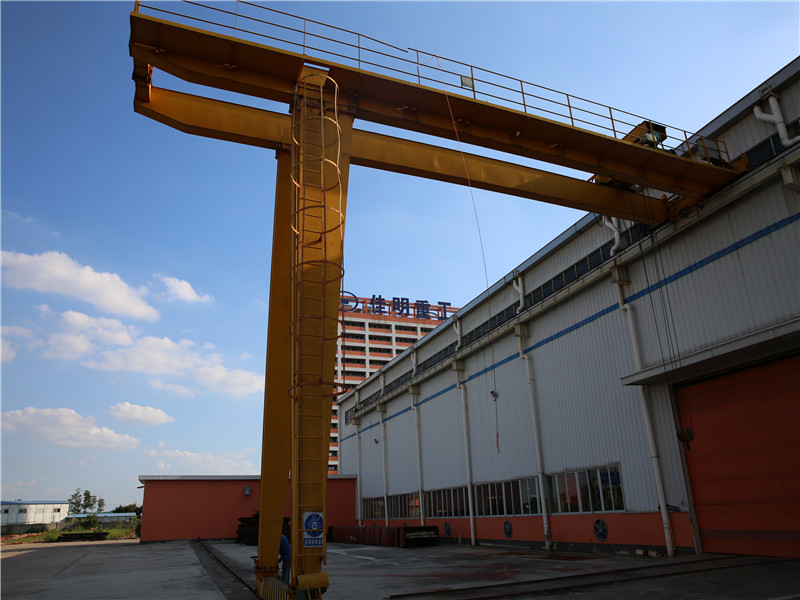

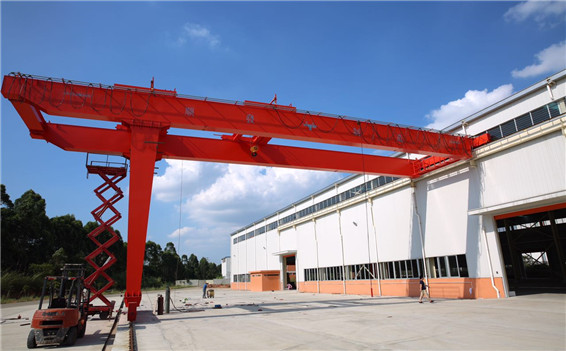

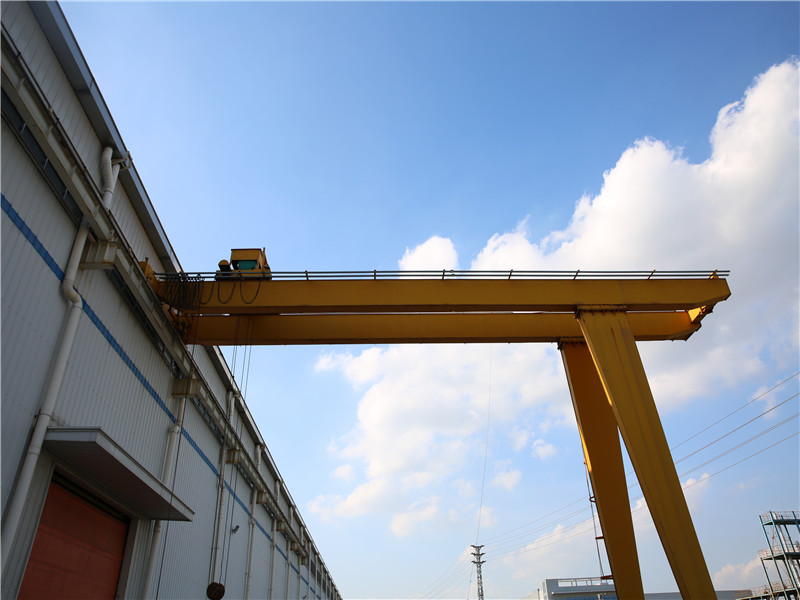

Produce Display
