MHS Type Double Girder Gantry Crane

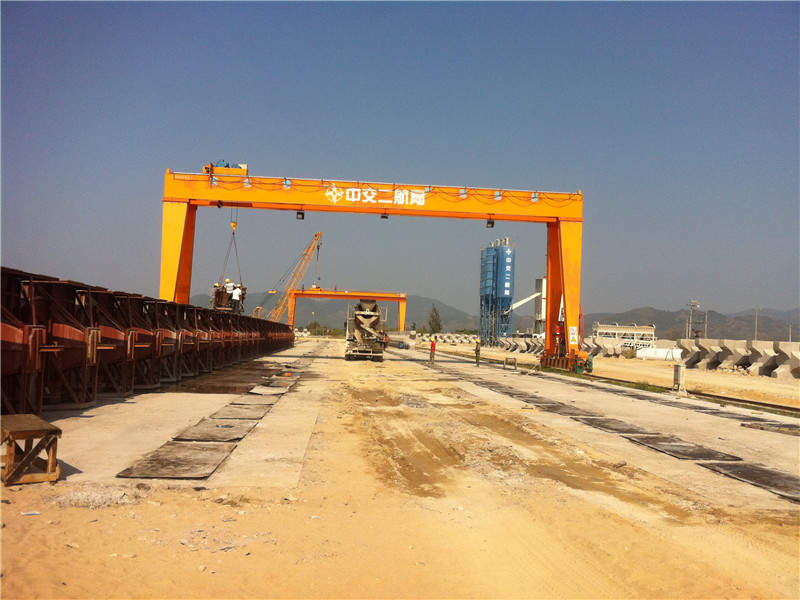

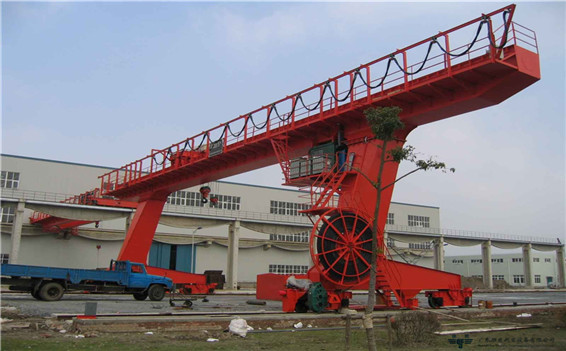

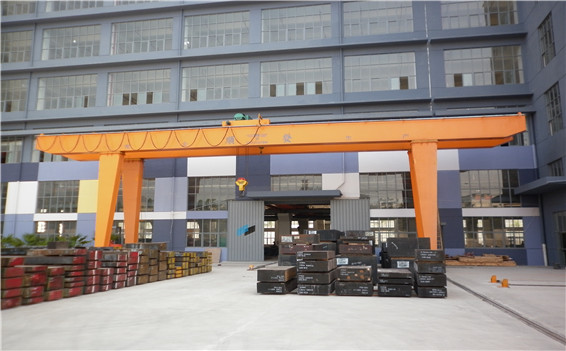

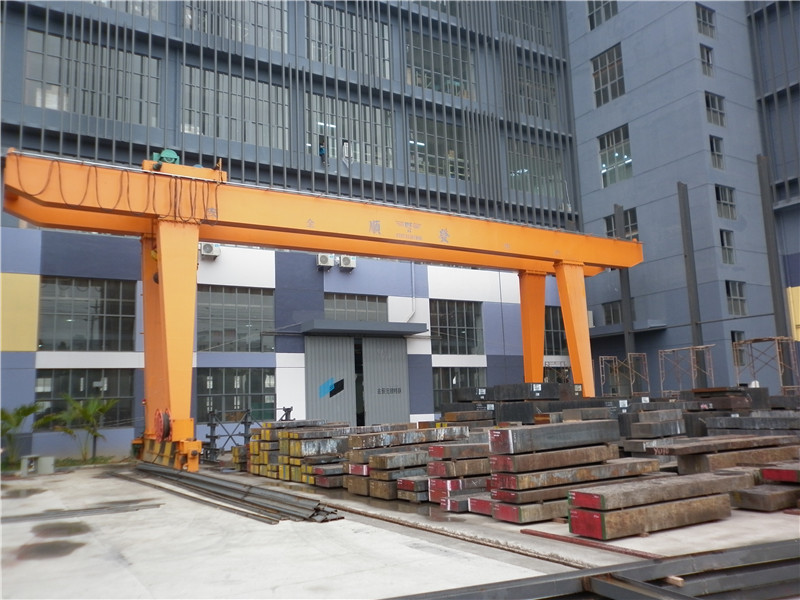

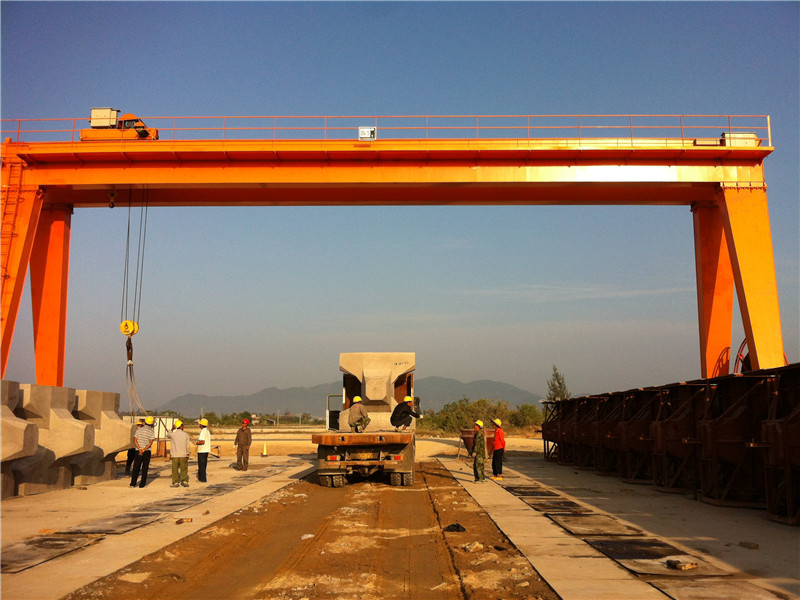

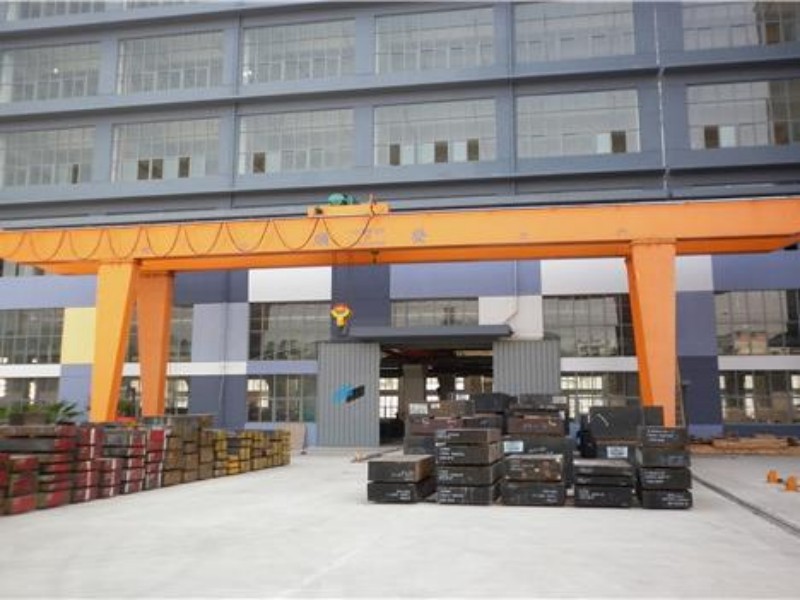

MHS type double girder gantry crane is a small and medium sized double beam gantry crane with cantilever. The electric hoist adopts CDI, MDI, HC and other forms. The main girder adopts box girder structure, and the big car operation mechanism adopts three in one drive device. The applicable lifting weight is 5-32t, the applicable span is 10-50 meters, and the working environment temperature is within the range of -25°C - 40°C. It has the advantages of simple structure, convenient installation, use and maintenance, and is mostly used in infrastructure construction projects, subway construction, building materials yards, factories, yards, docks, and other places with low frequency of use or less frequency of rated lifting weight.

Advantages: high cost performance, simple structure, fast delivery;

Disadvantages: low working level, not suitable for heavy occasions.

The crane is equipped with ground, control room and remote control three control forms for users to choose.

● Crane operating speed (variable frequency drive)

● The running speed of the cart (variable frequency speed control)

● Electric hoist with matching height limit switch

● Safety instruments and limiters for the operation of large and small vehicles

● Large vehicle operation sound and light alarm

● Wireless remote control

●  Lifting speed (dual speed): 8/0.8m/min 7/0.7m/min 3.5/0.35m/min

●  Large vehicle speed (variable frequency): 0-20m/min 0-30m/min 0-45m/min 0-60m/min

●  Cart speed (variable frequency): 0-20m/min 0-30m/min

● Outdoor use (add rain cover)

● All motors must have a protection level of no less than IP55, and the control box must have a protection level of no less than IP54.

●  Dual-speed motor

● Large vehicle optical-electronic anti-collision device

● Maintenance cage

● Remote service

● Target positioning

● Pick-and-place linkage

......（More features await your personal exploration）
