LX Type Single Girder Suspension Crane
Advantages and Features
The LX electric single-girder suspension crane (hereinafter referred to as the single-girder suspension crane) is designed and manufactured according to the standard JB2603-2008. It is used in conjunction with electric hoists of types CD1, MD1, etc., becoming a light and small crane with rail operation. Its applicable lifting capacity is 0.5t-5t, the applicable span is 3-16m, and the working environment temperature range is -20 to +40 degrees Celsius.
Application scope: This product is a general-purpose crane, commonly used in mechanical manufacturing assembly, warehouses, sewage treatment plants, concrete plants, caves, and other locations.
Usage speed
● Single-speed and dual-speed lifting
● Crane operating speed (variable frequency drive)
● The running speed of the cart (variable frequency speed control)
Safety
● Electric hoist with overload limiter
● Electric hoist with matching height limit switch
● Safety instruments and limiters for the operation of large and small vehicles
● Large vehicle operation sound and light alarm
Operating method
● Ground handle control
● Wireless remote control
Speed
● Lifting speed (single speed): 8m/min 7m/min 3.5m/min
● Lifting speed (dual speed): 8/0.8m/min 7/0.7m/min 3.5/0.35m/min
● Large vehicle speed (variable frequency): 0-20m/min
● Cart speed (variable frequency): 0-10m/min 0-20m/min
Operating Environment
● Indoor use
● Outdoor use (add rain cover)
● All motors must have a protection level of no less than IP55, and the control box must have a protection level of no less than IP54.
Option configuration
● Variable frequency drive
● Dual-speed motor
● Large vehicle optical-electronic anti-collision device
● Maintenance cage
Smart features options
● Anti-sway hook
● Remote service
● Target positioning
● Pick-and-place linkage
......（More features await your personal exploration）

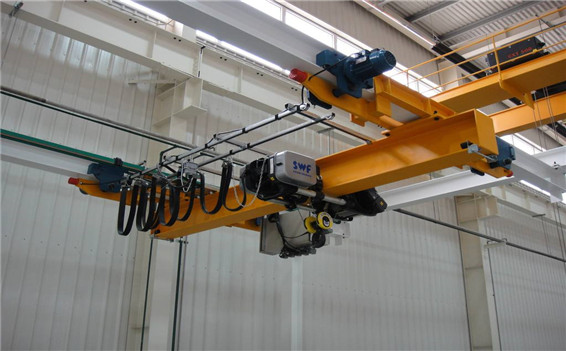

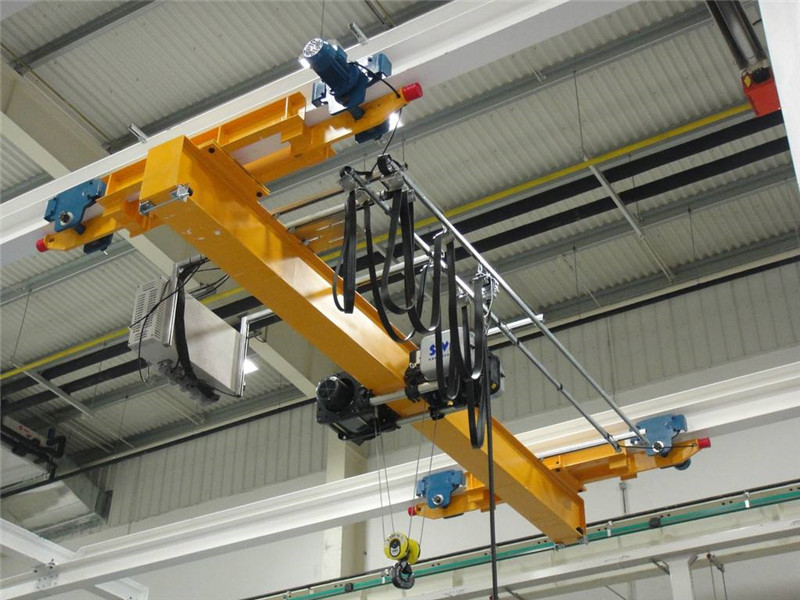

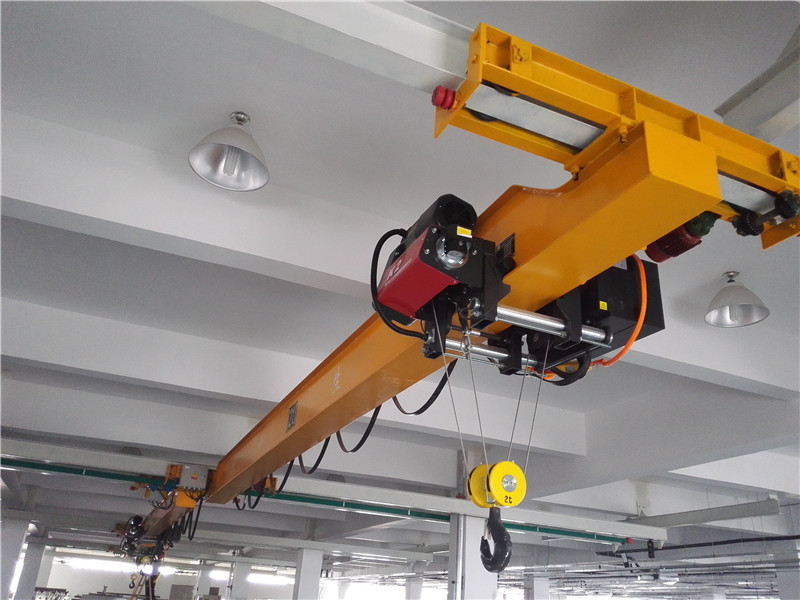

Produce Display
