LHE Type Double Girder Overhead Crane
Advantages and Features
The LHE electric hoist double-girder crane is designed and manufactured according to the standard JB/T3695-1994. It is used in conjunction with two sets of fixed electric hoists in the forms of CD, MD, etc. The trolley runs on the track laid on the main girder, making it a double-girder bridge crane structure (because this lifting mechanism has two trolley frames and two sets of electric hoists that can be controlled independently, it is named LHE type).
This product is a general-purpose crane, commonly used in mechanical manufacturing, assembly, warehouses, and other places with low usage frequency or few lifting operations within the rated lifting capacity.
Advantages: The lifting mechanism can operate independently or simultaneously, and it is very stable when both lifting mechanisms are transporting goods at the same time.
Disadvantage: The cost is relatively higher compared to ordinary hoist double-beam cranes.
Usage speed
● Single-speed and dual-speed lifting
● Crane operating speed (variable frequency drive)
● The running speed of the cart (variable frequency speed control)
Safety
● Electric hoist with overload limiter
● Electric hoist with matching height limit switch
● Safety instruments and limiters for the operation of large and small vehicles
● Large vehicle operation sound and light alarm
Operating method
● Ground handle control
● Wireless remote control
● Cockpit control (professional driving seat, adjustable in four ways, suitable for full-angle rotation, multi-window view, wide field of vision, dual-mode buttons or joystick)
Speed
● Lifting speed (single speed): 8m/min 7m/min 3.5m/min
● Lifting speed (dual speed): 8/0.8m/min 7/0.7m/min 3.5/0.35m/min
● Large vehicle speed (variable frequency): 0-30m/min 0-45m/min
● Cart speed (variable frequency): 0-20m/min+0-20m/min 0-30m/min+0-30m/min
Operating Environment
● Indoor use
● Outdoor use (add rain cover)
● All motors must have a protection level of no less than IP55, and the control box must have a protection level of no less than IP54.
Option configuration
● Variable frequency drive
● Dual-speed motor
● Large vehicle optical-electronic anti-collision device
● Maintenance cage
Smart features options
● Anti-sway hook
● Remote service
● Target positioning
● Pick-and-place linkage
......（More features await your personal exploration）

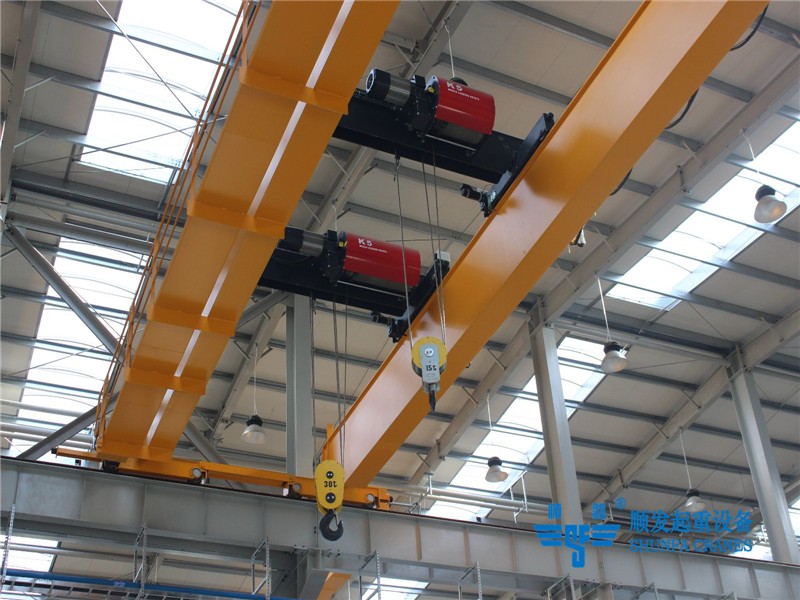

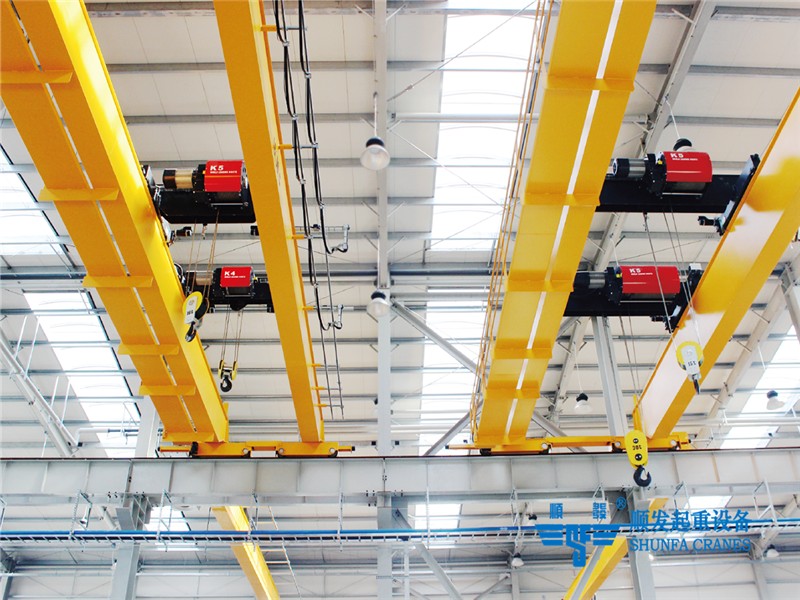

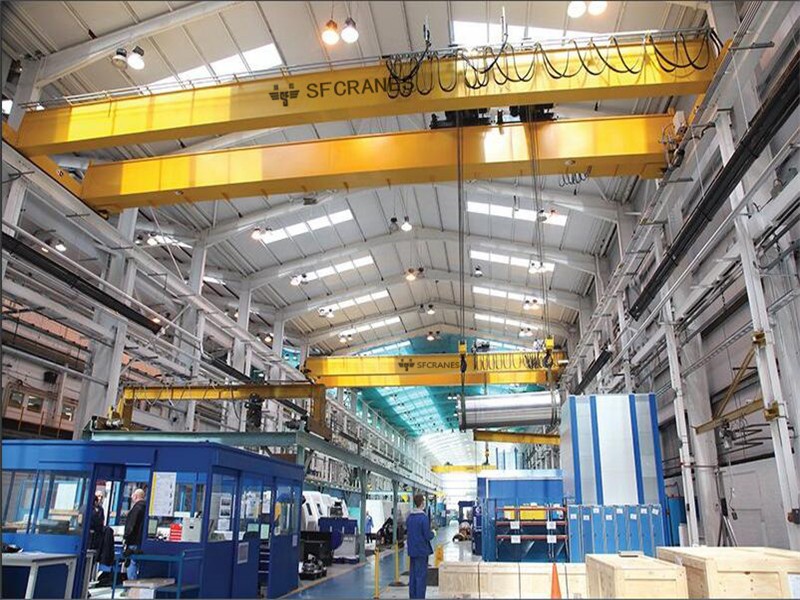

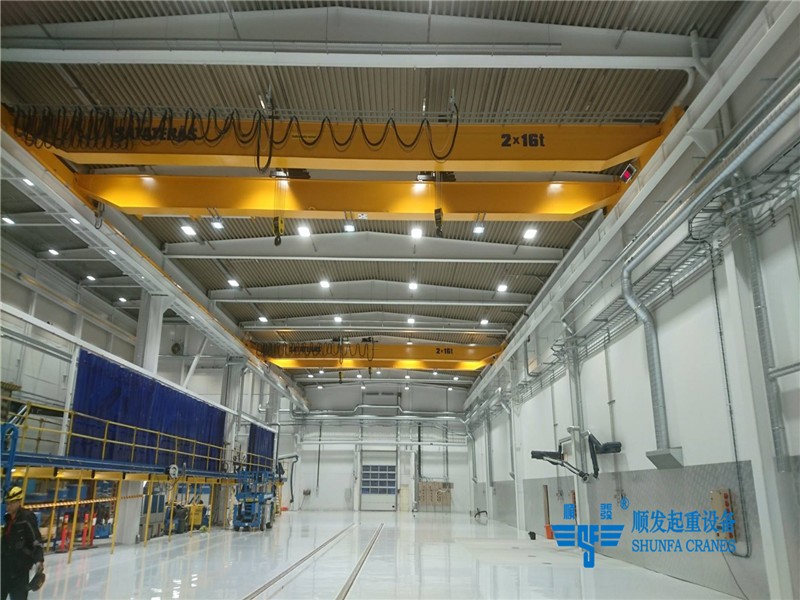

Produce Display
