LDP Type Single Girder Overhead Crane
Advantages and Features
LD electric single girder overhead crane (hereinafter referred to as single girder off-track crane)It is designed and manufactured according to the JB/T1306-94 standard and is used in conjunction with electric hoists such as the CD1 and MD1 models, becoming a type of ultra-low headroom, light small-sized crane with a sidetrack operation.The electric hoist is located on one side of the main beam, increasing the service space of the hook, which can reduce the height and cost of the factory building.The lifting capacity is 1-16 tons.Applicable span is 7.5 meters-22.5 meters.Working temperature -25°C~+40°C, humidity ≤84%, in an environment free from fire, explosion, and corrosive media, and the lifting of liquid metals, toxic, flammable, and explosive materials is prohibited.
Advantages: Compact dimensions, low building clearance height, overcoming the shortcomings of poor stability and limited effective lifting height of LD type electric single girder cranes, economical and practical.
Disadvantages: Low job level, not suitable for heavy workshops.
Usage speed
● Single-speed and dual-speed lifting
● Crane operating speed (variable frequency drive)
● The running speed of the cart (variable frequency speed control)
Safety
● Electric hoist with overload limiter
● Electric hoist with matching height limit switch
● Safety instruments and limiters for the operation of large and small vehicles
● Large vehicle operation sound and light alarm
Operating method
● Ground handle control
● Wireless remote control
Speed
● Lifting speed (single speed): 8m/min 7m/min 3.5m/min
● Lifting speed (dual speed): 8/0.8m/min 7/0.7m/min 3.5/0.35m/min
● Large vehicle speed (variable frequency): 0-30m/min
● Cart speed (variable frequency): 0-20m/min
Operating Environment
● Indoor use
● Outdoor use (add rain cover)
● All motors must have a protection level of no less than IP55, and the control box must have a protection level of no less than IP54.
Option configuration
● Variable frequency drive
● Dual-speed motor
● Large vehicle optical-electronic anti-collision device
● Maintenance cage
Smart features options
● Anti-sway hook
● Remote service
● Target positioning
● Pick-and-place linkage
......（More features await your personal exploration）

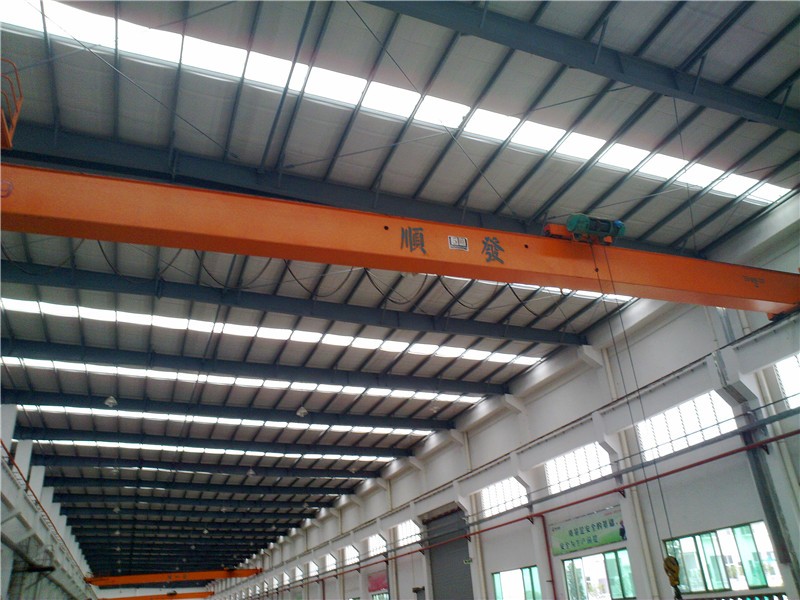

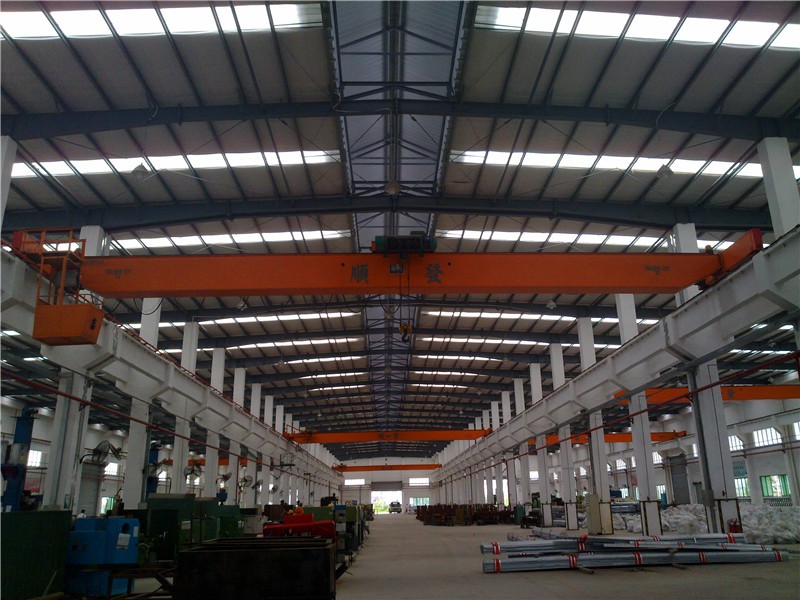

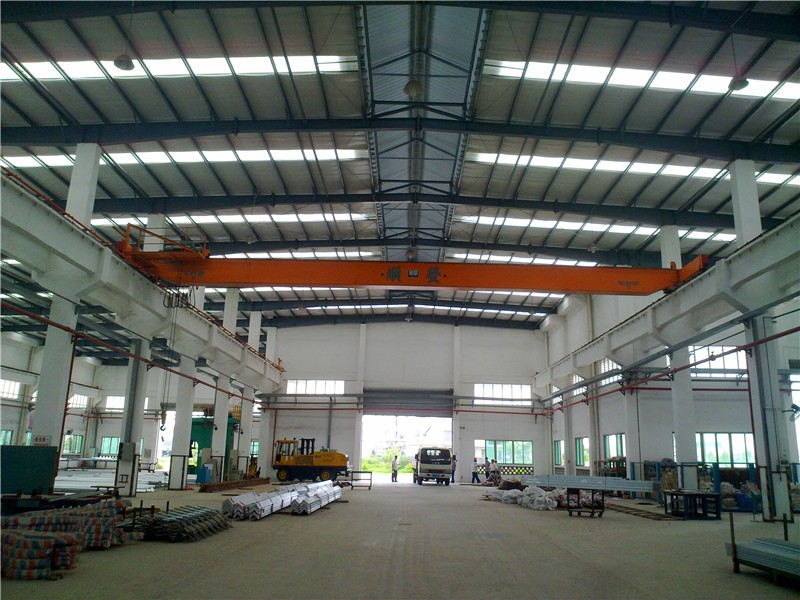

Produce Display
