LDE Type Double Girder Overhead Crane
Advantages and Features
The LDE model electric single-girder crane (hereinafter referred to as the double hoist single-girder crane) is designed and manufactured according to the JB/T1306-2008 standard. It is used in conjunction with two sets of electric hoists in the forms of CD1, MD1, etc., becoming a lightweight lifting equipment that runs on oil tracks. Its rated load is 1t+1t to 10t+10t; span 7.5m to 22.5m, operating temperature -25°C to +40°C, humidity ≤ 85%, working in environments without fire, explosion hazards, and corrosive media, and it is prohibited to lift molten metal, toxic, flammable, and explosive materials.
Usage speed
● Single-speed and dual-speed lifting
● Crane operating speed (variable frequency drive)
● The running speed of the cart (variable frequency speed control)
Safety
● Electric hoist with overload limiter
● Electric hoist with matching height limit switch
● Safety instruments and limiters for the operation of large and small vehicles
● Large vehicle operation sound and light alarm
Operating method
● Ground handle control
● Wireless remote control
Speed
● Lifting speed (single speed): 8m/min+8m/min 7m/min+7m/min
● Lifting speed (dual speed): 8m/min+8m/min 7/m/min+7m/min
● Large vehicle speed (variable frequency): 0-30m/min
● Cart speed (variable frequency): 0-20m/min
Operating Environment
● Indoor use
● Outdoor use (add rain cover)
● All motors must have a protection level of no less than IP55, and the control box must have a protection level of no less than IP54.
Option configuration
● Variable frequency drive
● Dual-speed motor
● Large vehicle optical-electronic anti-collision device
● Maintenance cage
Smart features options
● Anti-sway hook
● Remote service
● Target positioning
● Pick-and-place linkage
......（More features await your personal exploration）

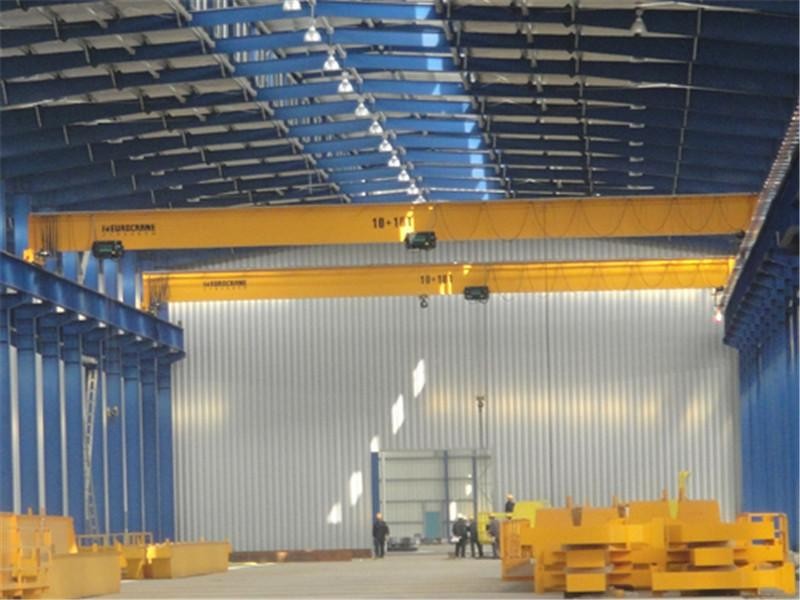

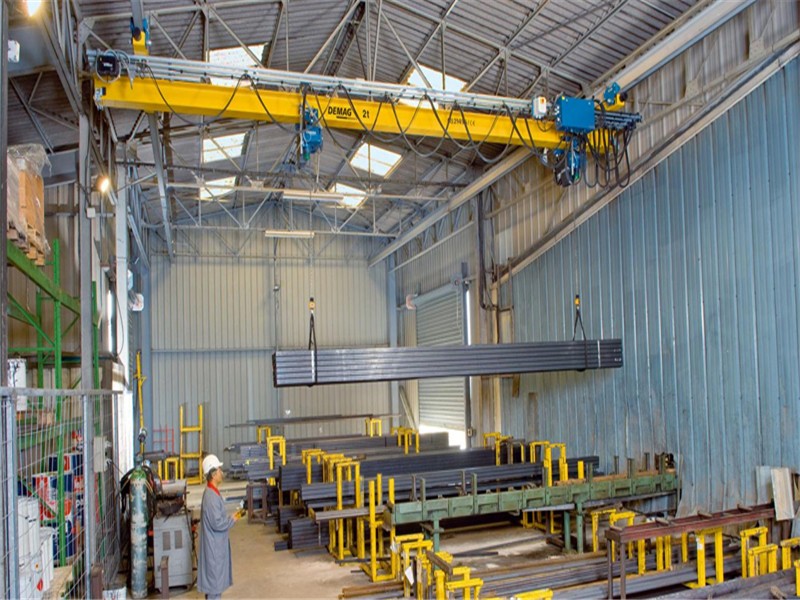

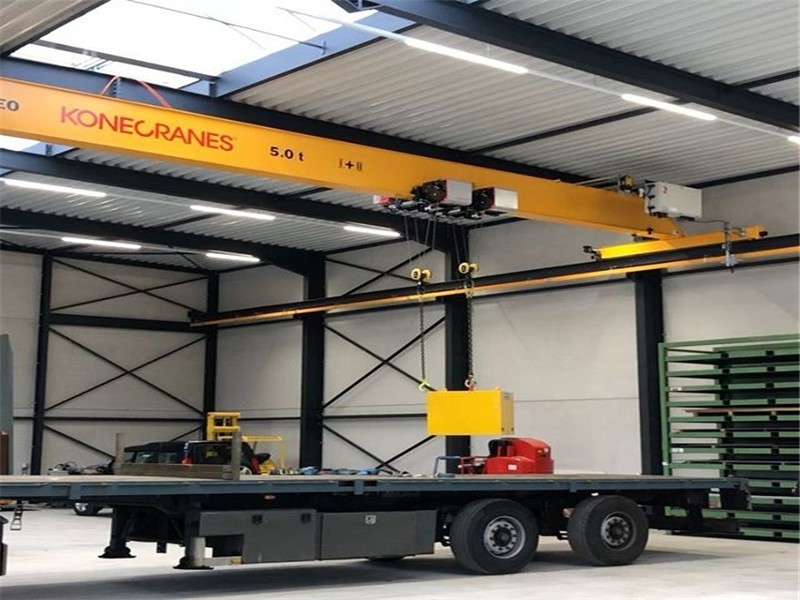

Produce Display
