Gantry Crane

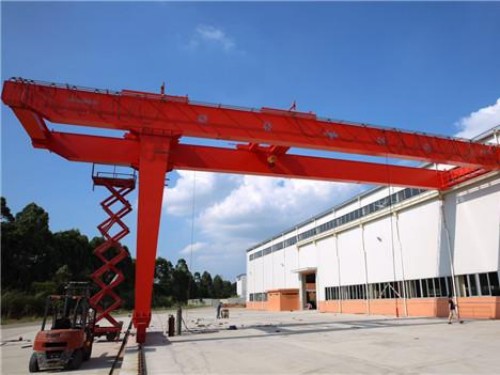

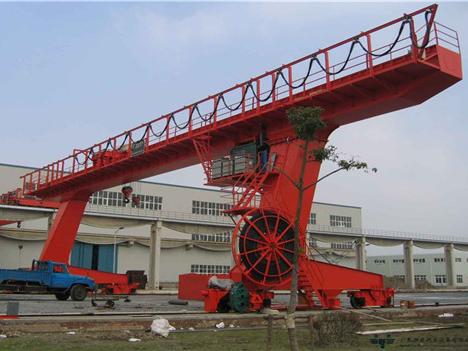

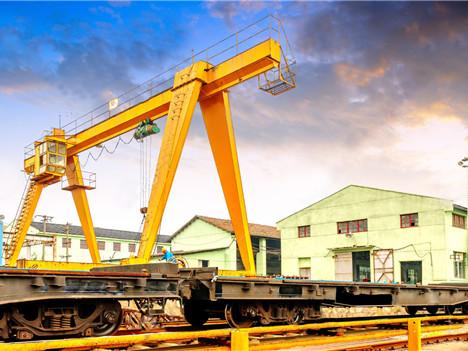

MDG type universal gantry crane is a kind of single girder gantry crane which is built according to GB/T14406-1993(China Crane Standard). Its capacity is 5-20 tons and working class is A5/A6, controlled by wire, remote and cabin. The crane is suitable for applications in port, container yard and other outdoor working area. It is good at handling long and slim items like lumber and steel pipes. The crane is easy to transport, installation and capable with large working area.
Advantages: wide vision, flexible operation, high efficiency, moderate price.
Disadvantages: the bridge is a single girder structure, the operation stability of the crane is relatively poor, shaking, poor wind resistance.
The crane is equipped with ground, control room and remote control three control forms for users to choose

The crane is optimized in design, modularized, compact in structure, and uses new technical designs to improve the performance of the entire machine and provide a degree of commonality.

Adopt advanced manufacturing process and equipment, such as robot automatic welding system, plasma cutting machine, high-energy shot blasting machine, etc.

Our company adopts advanced manufacturing technology to ensure the precision of the crane, uses high-quality parts, stable quality, and high-sensitivity safety devices.

• Applicable lifting weight
• 1t-16t
• Applicable span
• 5m-35m

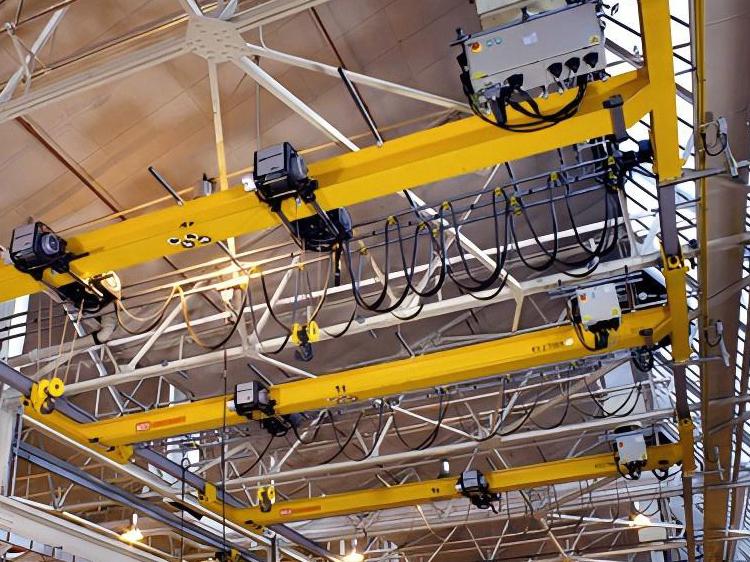

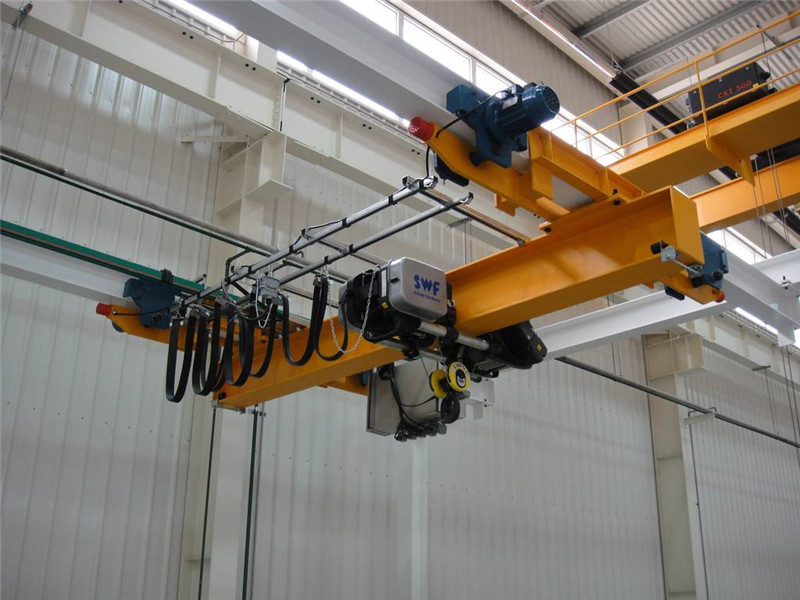

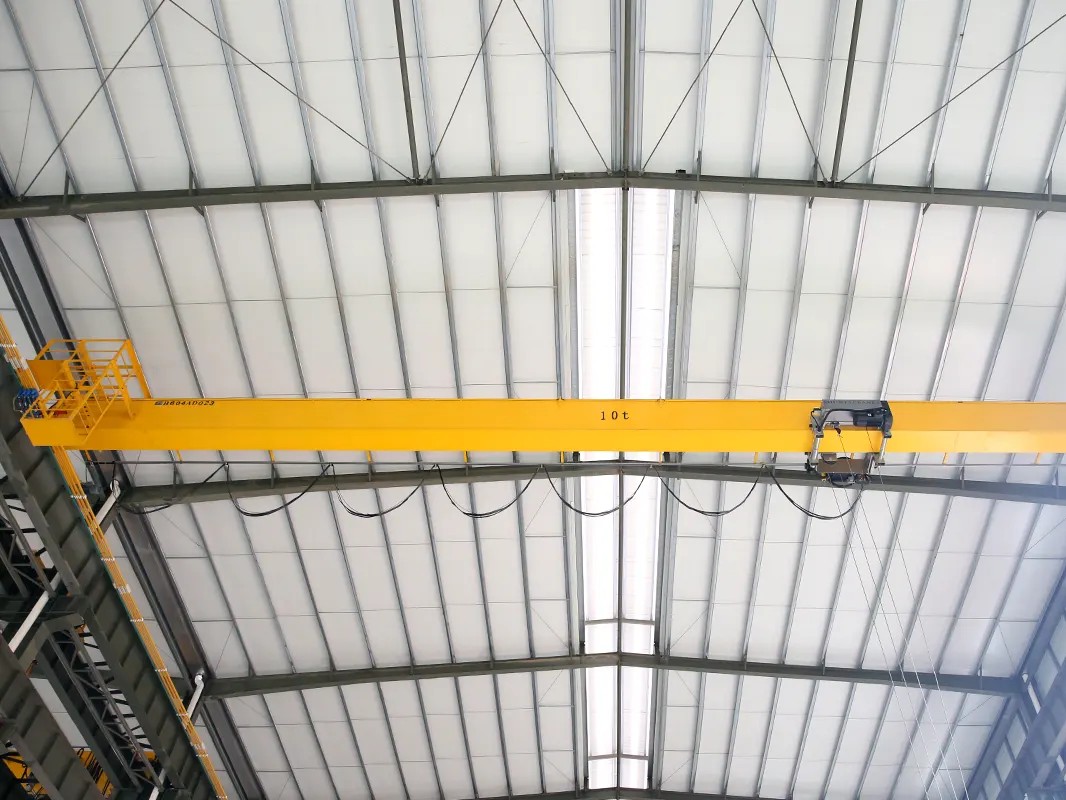

LX model single beam suspension motor crane and CD1, MD model electric hoist are used together as a complete set. It is a light duty track travelling crane with trajectory which applies to and used at machinery, assembling sites and warehouses.This product adopts ground controlling and works at a temperature of-25 to 40 .It is prohibited to use the.

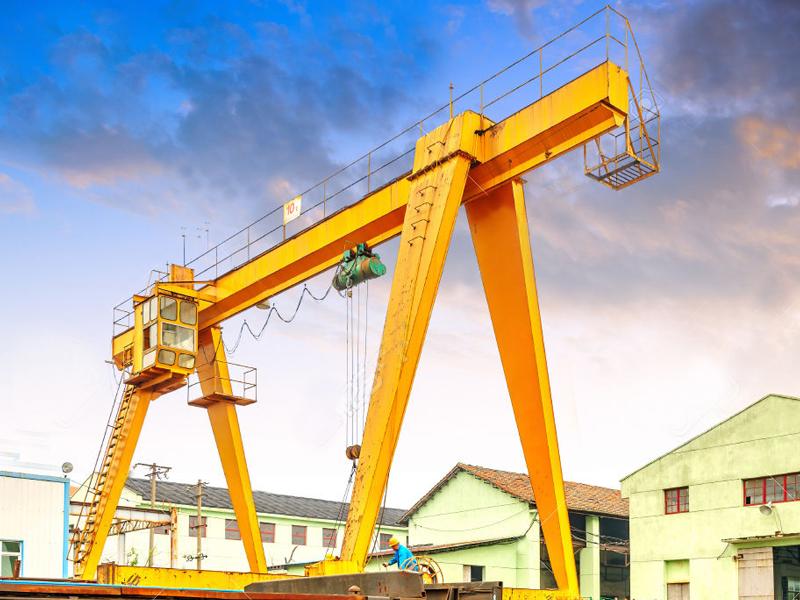

The MH single-girder gantry crane is a medium to small-sized gantry crane that can be equipped with cantilevers. The electric hoist is available in CDI, MDI, and other forms. The main girder is a composite beam made of U-shaped channel plates and I-beams welded together. The trolley running mechanism uses a three-in-one drive device.

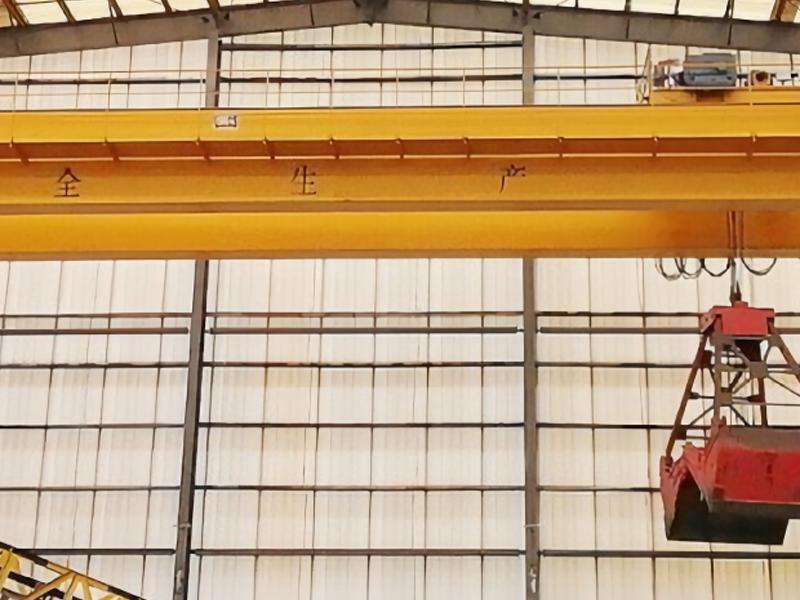

The grab trolley crane is a specialized lifting device designed for efficient material handling. It operates with a grab suspended by four steel ropes, ensuring even load distribution and secure lifting. This crane offers a wide span of 5m to 31.5m and a lifting height of up to 24m, suitable for diverse industrial settings. It is rated for a service class of A6 to A7, indicating its heavy-duty capabilities. Control modes include wireless remote and cabin control, and it requires a standard 3AC, 50Hz, 380V power supply. Lifting, trolley, and bridge speeds vary from 10m/min to 100m/min, making it a high-performance option for material handling in various industries.

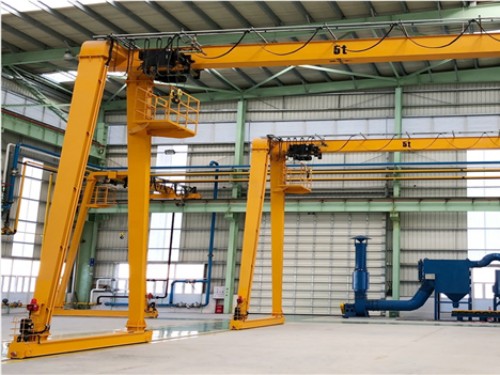

The MHB model single-girder gantry crane is a single-girder semi-gantry crane that uses an electric hoist as the lifting mechanism. The electric hoist is available in CDI, MDI, and other forms. The main girder is a composite beam made by welding U-shaped channel plates and I-beams, and the trolley running mechanism uses a three-in-one drive device. Its applicable lifting capacity is 3-16t, with a span of 5-16 meters, using a semi-leg structure. Typically, the other side's trolley running mechanism is mounted on the factory building. The working environment temperature ranges from -25℃ to 40℃. Its structure is simple, and it is easy to install, use, and maintain. It is mostly used in factories, cargo yards, and other places where the frequency of use is low or the number of lifts at the rated lifting capacity is few.
