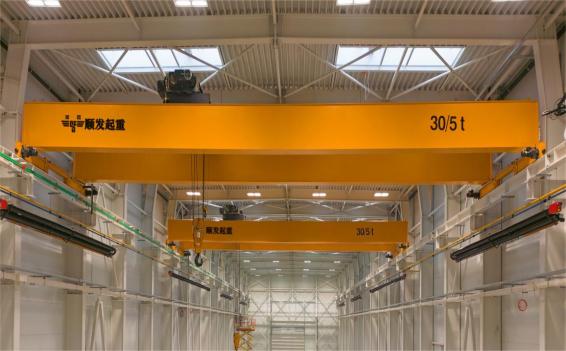

European double beam crane-1.jpg

European double beam crane

Compared with the traditional domestic double-beam crane, the main difference between the European double-beam crane and the traditional domestic double-beam crane is that the European wheel set is the key component of such parts. The European wheel set is light in weight, small in size, and easy to install. It is mainly composed of four parts: wheel axle, wheel plate, bearing box, and bearing. It is directly matched with the three-in-one reducer and does not need to be connected through a coupling. Therefore, this type of wheel has a compact structure, high assembly precision, stable operation and low noise.

  • Free design
  • Energy saving and high energy
  • Lifetime Service
  • Applicable lifting weight ：3t-80t
  • Applicable span：5m-50m
    Contact us
    product details

    Advantages and Features

    European double beam crane product introduction

    Our European double girder cranes (European cranes) have maximum rigidity and minimum deadweight. This keeps the load on the crane runway to a minimum and allows an economical and energy-efficient design to be selected for the building. This approach offers you an economical and energy-efficient solution. They also include a lifting device with high energy efficiency for loading and unloading speeds and have an advantage over conventional cranes, resulting in excellent ride quality for increased overall efficiency.

    What other benefits does our lifting equipment offer?

    • Crane girder made of computer-optimized box profiles
      Torsionally rigid end frame, welded box section design
      As part of the European crane standard design, the hoist offers increased cost-effectiveness due to its extended service life
      Increased lifting and straddling speeds improve load handling capabilities
      Infinitely variable traverse speed for low-swing load movement (optional)

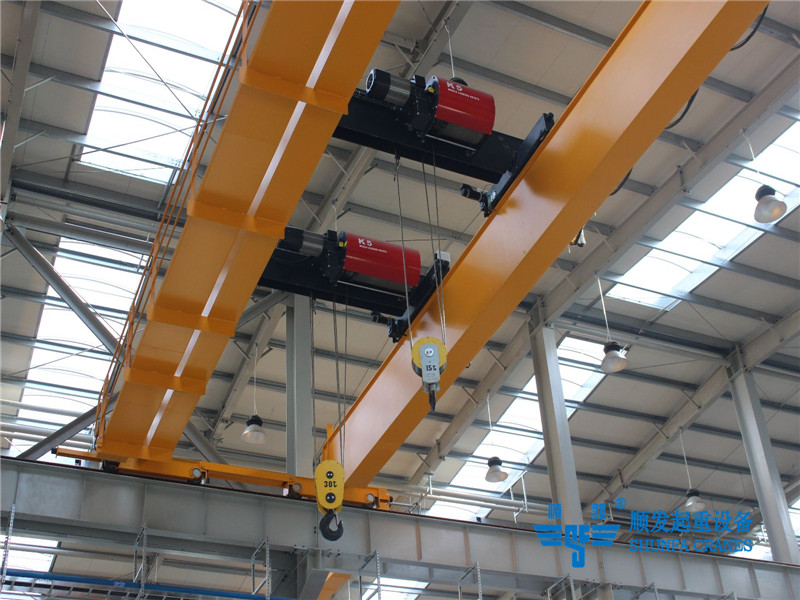

    • European double beam crane-detail-1
    • European double beam crane-detail-2
    • Design of high stability and main beam rigidity of European double-beam crane
      Torsionally rigid, closed box section with reinforced connections (welded bulkheads)
      Torsionally rigid end frame, welded box section design
      Low-maintenance drive for good driving characteristics and minimal wear
      Highly wear-resistant GGG 70 ductile iron travel wheels with self-lubricating properties
      Optimum travel characteristics with minimal wear on the crane runway and travel wheels
    • European double girder crane is very cost-effective
      Low load weight reduces investment layout – crane beam made of computer-optimized box section
      Thanks to modern technology, reliable monitoring and preventive maintenance meet future requirements for high data transmission reliability (category 3 according to DIN / EN 954)
      Compact crane design and large hook diameter for optimal use of available height and space
      Optimized design reduces construction and operating costs
    • European double beam crane-detail-3

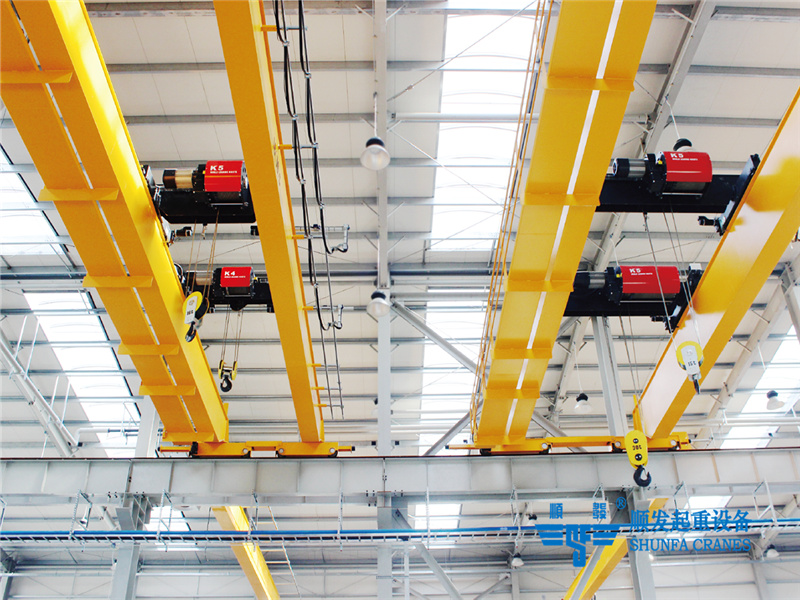

    • European double beam crane-detail-4
    • European single beam crane efficiency and performance
      Low-maintenance drive, minimizing wear on the crane runway and travel wheels
      Control pendant suspended from the crane beam for individual travel with display for installation monitoring
      The crab is powered via a highly flexible flat cable with a protective earth conductor
      Optional radio control with power and signal transmission via energy chain system
      Optional radio control with display and proportional buttons
      Monitoring for greater installation transparency
      Minimum access dimensions increase utilization of production areas
