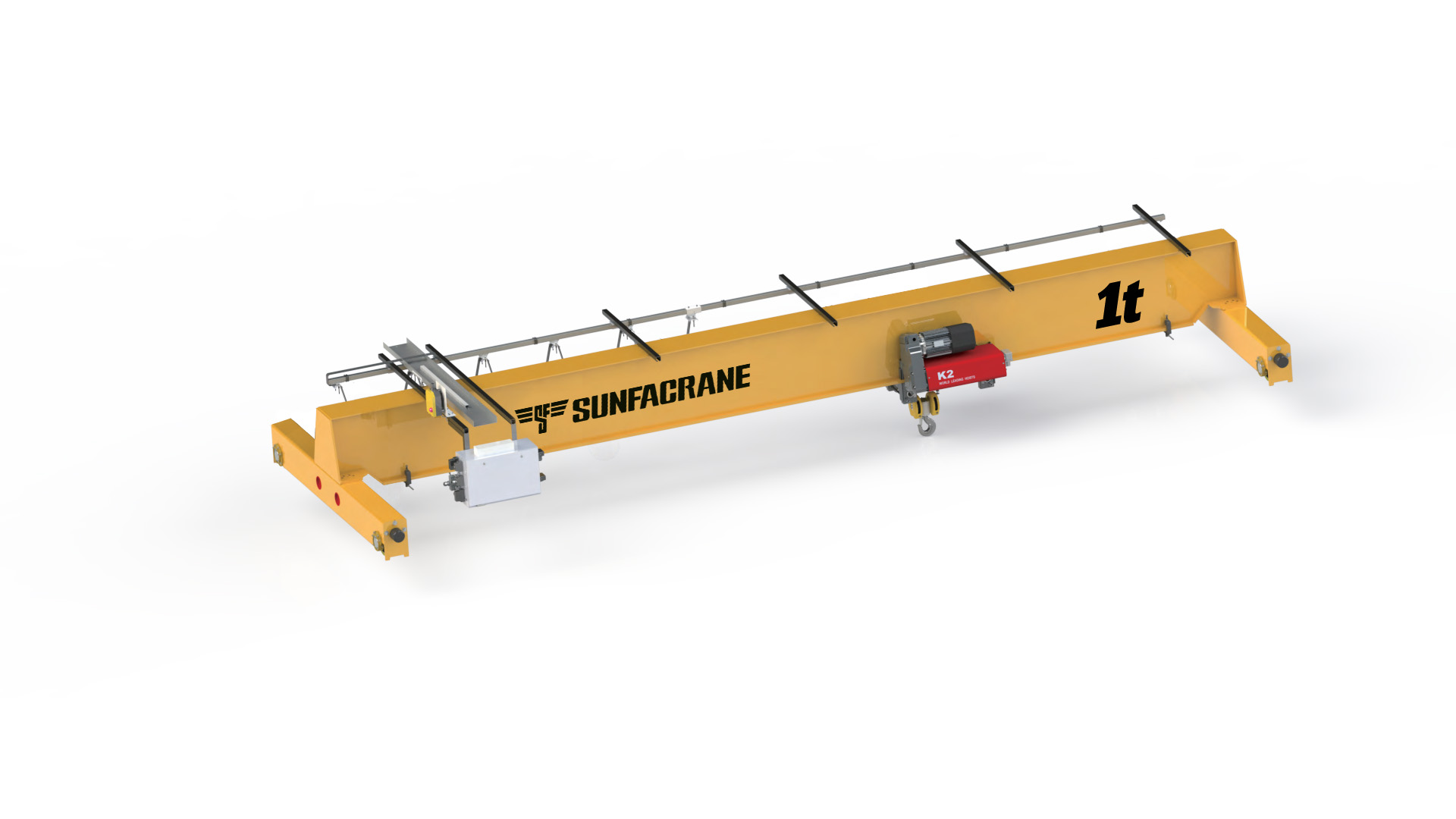

1 Ton Single Girder Overhead Crane
1 Ton Single Girder Overhead Crane Technical Data
|
Single Girder Overhead Crane Technical Data |
|||||||||||
|
SWL/CLASS 1t / A5 |
|||||||||||
|
Span |
S |
m |
7.5 |
10.5 |
13.5 |
16.5 |
19.5 |
22.5 |
25.5 |
28.5 |
|
|
Basic Data |
Crane Weight |
t |
1.22 |
1.52 |
1.93 |
2.80 |
3.21 |
4.62 |
5.2 |
7.03 |
|
|
Trolley Weight |
0.20 |
0.20 |
0.20 |
0.20 |
0.20 |
0.20 |
0.20 |
0.20 |
|||
|
Max. Wheel Load |
kN |
8.7 |
9.9 |
11.2 |
13.4 |
14.4 |
18.0 |
19.5 |
24.0 |
||
|
Min. Wheel Load |
2.5 |
3.0 |
3.9 |
5.9 |
6.9 |
10.2 |
12 |
16.0 |
|||
|
Crane Wheel Q'ty |
PCS |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
||
|
Crane Rail |
P22 |
P22 |
P22 |
P22 |
P22 |
P22 |
P22 |
P22 |
|||
|
Speed |
Lifting Speed |
m/min |
5/0.8 |
||||||||
|
Trolley Speed |
0 - 20 |
||||||||||
|
Bridge Speed |
0 - 32 |
||||||||||
|
Motor Power |
Lifting Motor |
kW |
2/0.25 |
2/0.25 |
2/0.25 |
2/0.25 |
2/0.25 |
2/0.25 |
2/0.25 |
2/0.25 |
|
|
Trolley Motor |
1×0.3 |
1×0.3 |
1×0.3 |
1×0.3 |
1×0.3 |
1×0.3 |
1×0.3 |
1×0.3 |
|||
|
Bridge Motor |
2×0.3 |
2×0.3 |
2×0.3 |
2×0.3 |
2×0.3 |
2×0.3 |
2×0.3 |
2×0.65 |
|||
|
Crane Power |
2.9 |
2.9 |
2.9 |
2.9 |
2.9 |
2.9 |
2.9 |
3.6 |
|||
|

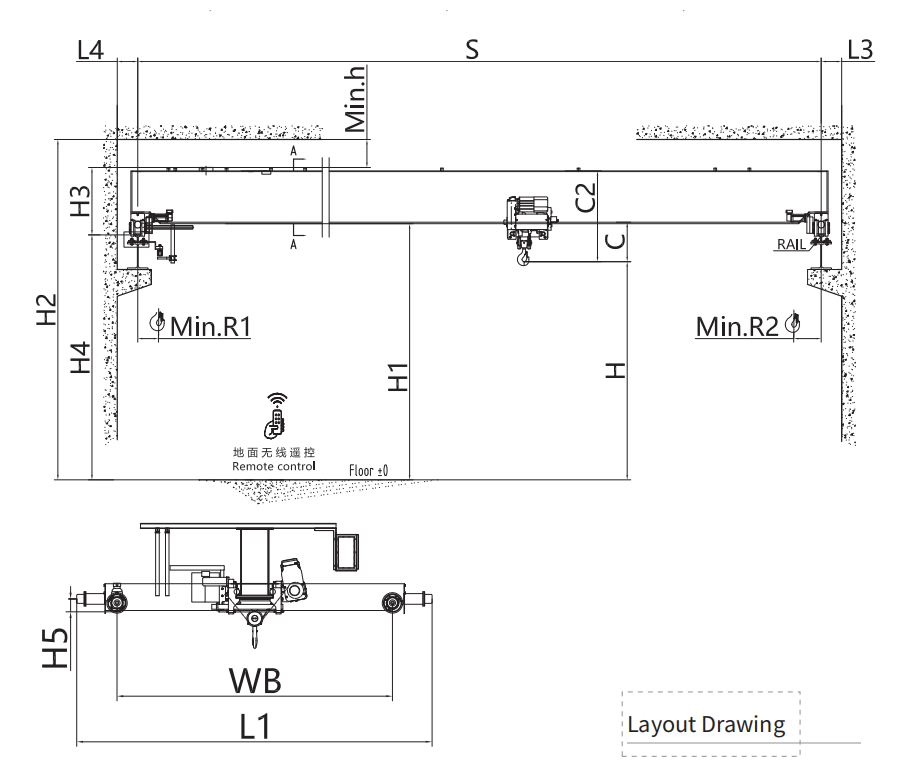

Main Dimension |
Top of Rail Height |
H4 |
mm |
9000(or specified by clients ) |
|||||||
|
Top Clearance |
Min. h |
2 200 (JB/T1306-2008 ) |
|||||||||
|
C dimension |
C |
330-600 |
|||||||||
|
Hook to Crane Top |
C2 |
852 |
852 |
984 |
1104 |
1236 |
1423 |
1423 |
1543 |
||
|
Rail to Crane Top |
H3 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
800 |
||
|
Lifting Height |
H |
8748 |
8748 |
8616 |
8496 |
8364 |
8177 |
8177 |
8257 |
||
|
Ceiling to Floor Height |
H2 |
9800 |
9800 |
9800 |
9800 |
9800 |
9800 |
9800 |
10000 |
||
|
Girder Bottom Height |
H1 |
9168 |
9168 |
9036 |
8916 |
8784 |
8597 |
8597 |
8677 |
||
|
Hook Approach L. |
Min. R1 |
440 |
440 |
520 |
540 |
650 |
650 |
650 |
660 |
||
|
Hook Approach R. |
Min. R2 |
400 |
400 |
480 |
480 |
510 |
510 |
510 |
520 |
||
|
Rail Center to Left Wall |
L4 |
206 |
206 |
206 |
206 |
206 |
210 |
210 |
246 |
||
|
Rail Center to Right Wall |
L3 |
206 |
206 |
206 |
206 |
206 |
210 |
210 |
246 |
||
|
Bridge Wheel Base |
WB |
1800 |
1800 |
1800 |
2200 |
2700 |
3100 |
3800 |
4500 |
||
|
Trolley Rail Guage |
Lxc |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
||
|
Buffer Height |
H5 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
150 |
||
|
Crane Width |
L1 |
2126 |
2126 |
2126 |
2496 |
2996 |
3456 |
4156 |
5010 |
||
|
Guiding (contact)Force |
S |
kN |
3.4 |
3.9 |
4.4 |
4.9 |
5 |
5.90 |
6.50 |
7.00 |
|
|
Buffer Force |
Bf |
kN |
5 |
7 |
9 |
11 |
13 |
15.0 |
18.0 |
20.0 |
|
