LD Type Singel Girder Overhead Crane

Bridge Crane

LD Type Singel Girder Overhead Crane

The LD(A) type electric single girder crane is designed and manufactured according to the standard B/T1306-1994, and is used in conjunction with electric hoists such as CD-I and MD1. It has become a light and small crane with rail operation, suitable for lifting loads ranging from 1 to 16 tons. The standard recommended span is 75-225 meters, and the working environment temperature range is -25℃ to 40℃. This product is a general-purpose crane, mainly used in mechanical manufacturing, assembly, warehouses, and other places with low usage frequency or few lifting operations at the rated lifting capacity.

    product description

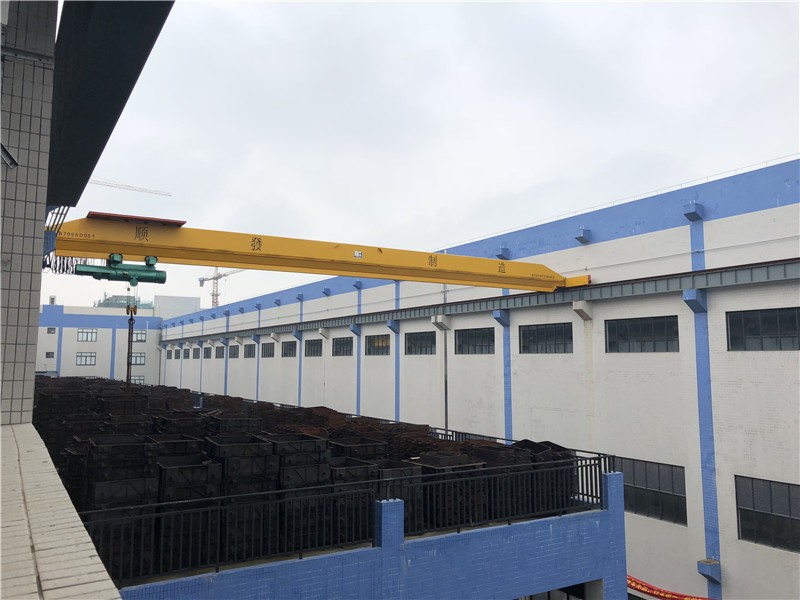

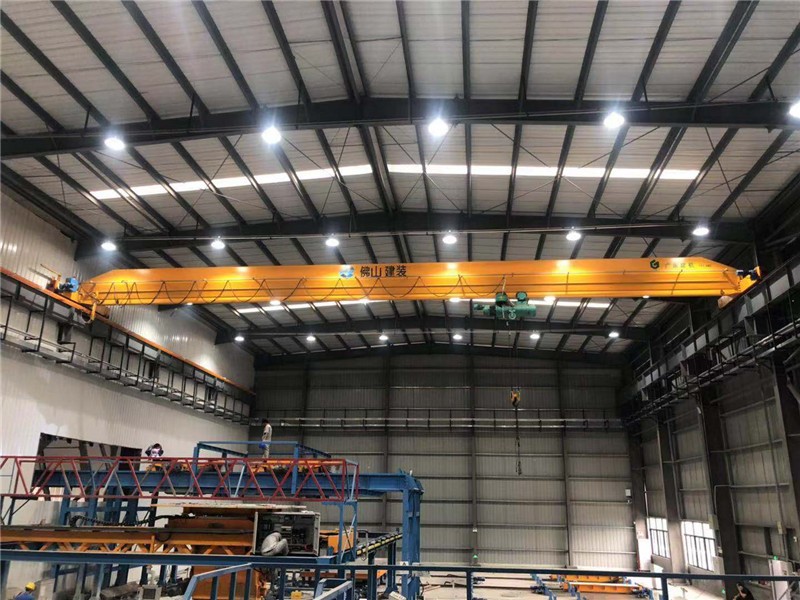

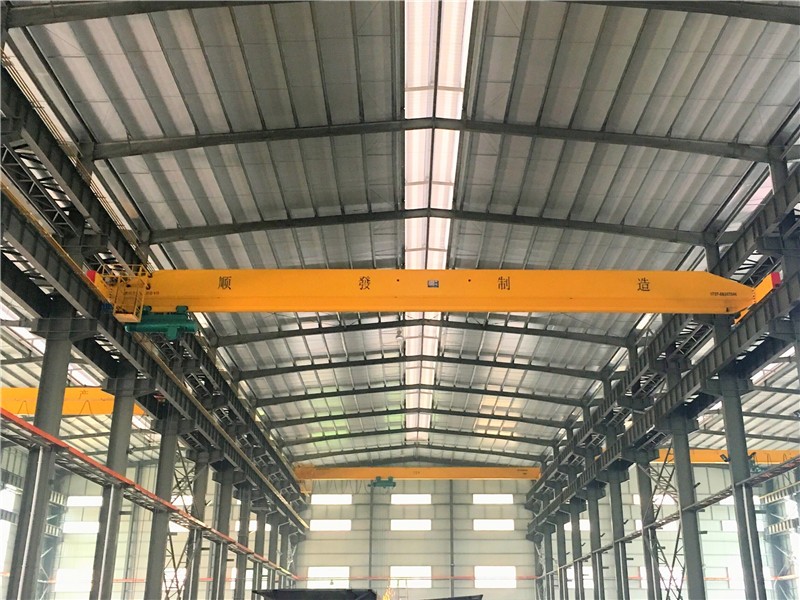

    This product is widely used in plants warehouses material stocks to lift goods It is prohibited to use the equipment in the combustible explosive or corrosive environment. This product has two operational methods ground or operational room which has open model and closed model and can be installed on left or right side according to the practical.
    • product description01
    • product description02

    drawing

    product-description1

    specification

    Cap (t) 1 2
    Spa n (m) 8 9 10 1 1 12 13 14 15 16 17 19.5 22.5 8 9 10 11 12 1 3 14 15 16 17 19.5 22.5
    Duty A3-A5
    Lifting Height 6、9、12、18、23、30m(The standard lifting height is 6m)
    Lifting Speed 8,8/0.8m/min(The standard lifting speed is 8m/min)
    Travelling 20 、 30m/min (The standard gourd operating speed is 20m/min)
    Travelling 20、30、45m/min(The standard operating speed of the crane is30m/min)
    Work type Ground control, room control, remote control
    Po wet Supply 3AC,380V, 50HZ
    Chief volume 3 . 1KW 4 .6KW
    Cr an e Rail P15 、 P18 、 P22 、 P24
    Main Dimension (mm) H 490 530 580 490 581 660 720
    H 1 810 860 870 1000 1050 1060 1080 1120
    H2 550 600 650 700 550 600 700 800 900
    K 2000 2500 3000 2000 2500 3000
    B 2500 3000 3500 2500 3000 3500
    L 1 800 880
    L2 1280 1300
    Max Wheel loading (KN) Ground  control 1 1 12 12 12 12 1 3 1 3 1 3 14 16 1 7 18 1 7 1 7 1 7 18 18 19 19 19 20 20 22 24
    Room control 14 1 5 1 5 1 5 1 5 16 16 16 1 7 1 7 18 19 20 20 20 2 1 2 1 22 22 22 2 3 2 3 2 5 2 7
    Total weight (t) Ground  control 1.7 1.8 1.9 2 2 . 1 2.2 2.3 2.5 2.6 2.7 3 3.5 1.9 2 2 2 . 1 2.3 2.4 2.5 2.7 2.8 3 3.9 4.7
    Room control 2 . 1 2.2 2.3 2.4 2.5 2.6 2.7 2.9 3 3 . 1 3.4 3.9 2.3 2.4 2.4 2.5 2.7 2.8 2.9 3 . 1 3.2 3.4 4.3 5 . 1
    Cap (t) 3 5
    Spa n (m) 8 9 10 1 1 12 1 3 14 1 5 16 1 7 19.5 22.5 8 9 10 1 1 12 1 3 14 1 5 16 1 7 19.5 22.5
    Duty A3-A5
    Lifting Height 6 、 9 、 12 、 18 、 23 、 30m (The standard lifting height is6m)
    Lifting Speed 8,8/0 .8m/mi n (The standard lifting speed is8m/min)
    Travelling 20 、 30m/min (The standard hoist operating speed is20m/min)
    Travelling 20 、 30 、 4 5m/min (The standard crane operating speed is30m/min)
    Work type Ground control, room control, remote control
    Po wet Supply 3AC,380V, 50HZ
    Chief volume 6 .5KW 9 .9KW
    Cr an e Rail P18 、 P22 、 P24
    Main Dimension (mm) H 520 580 660 745 820 580 660 785 820 875
    H 1 1 1 5 0 1 1 7 0 1185 1210 1380 1400 1415 1440 1485
    H2 650 700 800 900 1000 700 800 900 1000 1100
    K 2000 2500 3000 2000 2500 3000
    B 2500 3000 3500 2500 3000 3500
    L 1 820 850
    L2 1300 1 3 1 0
    Max Wheel loading (KN) Ground  control 22 22 2 3 2 3 2 3 24 24 2 5 26 26 28 30 3 3 34 34 34 3 5 36 36 3 7 38 38 40 42
    Room control 2 5 2 5 26 26 26 2 7 2 7 28 29 29 3 1 3 3 36 3 7 3 7 3 7 38 39 39 40 4 1 4 1 4 3 4 5
    Total weight (t) Ground  control 2 2 2.2 2.3 2.4 2.6 2.6 3.3 3.4 3.6 4.3 4.9 2.2 2,4 2.5 2.6 3 . 1 3.3 3.4 3.8 4 4.2 4.6 5.7
    Room control 2.4 2.4 2.6 2.7 2.7 3 3 . 1 3.7 3.8 4 4.7 5.3 2.6 2.8 2.9 3 3.5 3.7 3.8 4.2 4.4 4.6 5 6 . 1
    Cap (t) 10 16
    Spa n (m) 8 9 10 1 1 12 1 3 14 1 5 16 1 7 19.5 22.5 8 9 10 1 1 12 1 3 14 1 5 16 1 7 19.5 22.5
    Duty A3-A5
    Lifting Height 6 、 9 、 12 、 18 、 23 、 30m (The standard lifting height is6m)
    Lifting Speed 4/0 .4m/mi n 、 7/0. 7m/min (The standard lifting speed is7m/min) 3 .5/0 .3 5m/min (The standard lifting speed is3.5m/min)
    Travelling 20 、 30m/min (The standard gourd running speed is20m/min)
    Travelling 20 、 30 、 4 5m/min (The standard operating speed of the crane is30m/min)
    Work type Ground control, room control, remote control
    Po wet Supply 3AC,380V, 50HZ
    Chief volume 16 .2KW 1 7 .6KW 1 7 .6KW 19KW
    Cr an e Rail P24 、 P38
    Main Dimension (mm) H 875 975 1050 1075 1100 1068 1168
    H 1 1470 1495 1540 1600 1640 2032
    H2 950 1050 1 1 5 0 1200 1250 1200 1300 1400
    K 2000 2500 3000 2000 2500 3000
    B 2500 3000 3500 2500 3000 3500
    L 1 1230 1300
    L2 1830 1900
    Max.Wheel loading (t) Ground  control 6 5 6 7 68 69 70 7 1 72 7 3 74 7 5 78 8 1 4.6 5.2 5.5 5.7 6 . 1 6.4 6.6 7 . 1 8.7 9.5 9.9 1 1
    Room control 68 70 7 1 72 7 3 74 7 5 76 7 7 78 8 1 84 5.4 6 6.3 6.5 6.9 7.2 7.4 7.9 9.5 10.3 10.7 1 1 . 8
    Total weight (t) Ground  control 4.2 4.4 4.6 4.8 5 5.2 5.4 5.7 6 6.2 7.2 7.8 88 89 9 9 . 1 9 . 1 9.2 9.2 9.3 9.4 9.6 100 105
    Room control 4.5 4.7 4.9 5 . 1 5.3 5.5 5.7 6 6.3 6.5 7.5 8 . 1 90 9 1 9.2 9.3 9.3 9.4 9.4 9.5 9.6 9.8 102 107
